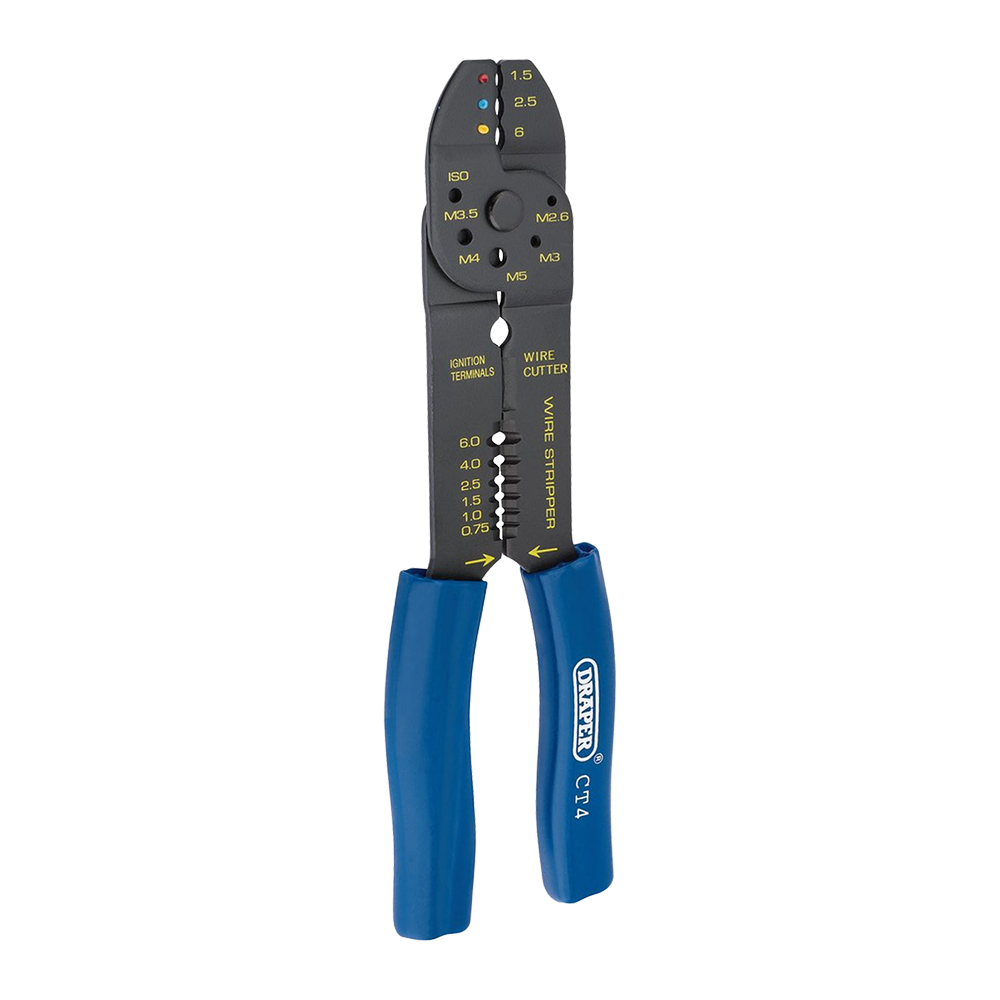

DRAPER 4 Way Crimping Tool

SKU: DR4WCT215

Barcode: 5010559136575

Made from heavy gauge carbon steel that's hardened, tempered and chemically blacked. Fitted with moulded grip handles for added user comfort. Functions: Crimping insulated terminals size: 1.5mm (red), 2.5mm (blue) and 6.0mm (yellow), Crimping ignition terminals, Wire cutting, Wire stripping: 0.75, 1.0, 1.5, 2.5, 4.0 and 6.0mm, Shears bolts size: 2.6, 3.0, 3.5, 4.0 and 5.0mm.

Features:

• Carbon steel with hardened and tempered jaws.
• PVC grip handles.
• Crimping ignition terminals
• Wire cutting

Specifications:

• Capacities: RED 22 - 18 AWG. 0.5 - 1.0mm² BLUE 16 - 14 AWG. 1.5 - 2.5mm² YELLOW 12 - 10 AWG.
• Crimping insulated terminals size: 1.5mm² (red), 2.5mm² (blue) and 6.0mm² (yellow)
• Wire stripping: 0.75, 1.0, 1.5, 2.5, 4.0 and 6.0mm²
• Shears bolts size: 2.6, 3.0, 3.5, 4.0 and 5.0mm.
