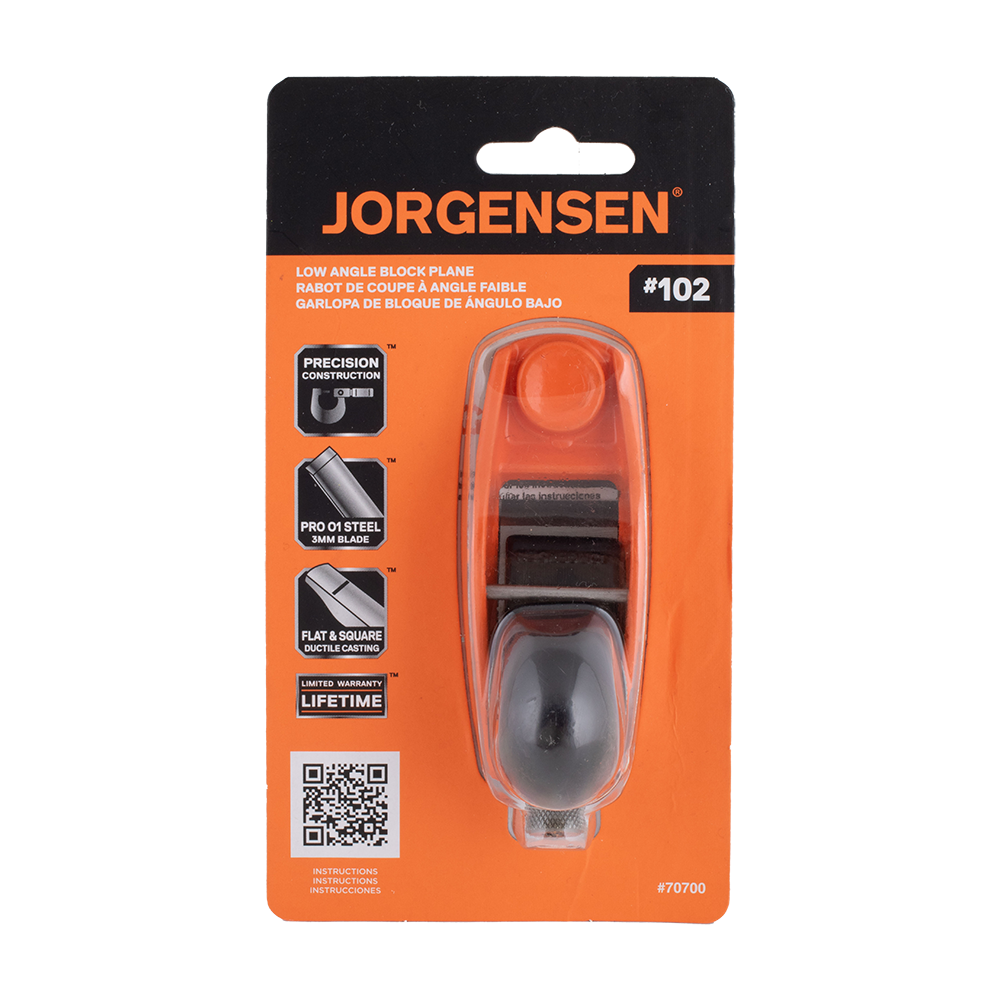

JORGENSEN Mini Block Plane

SKU: AJP70700

Barcode: 044295707008

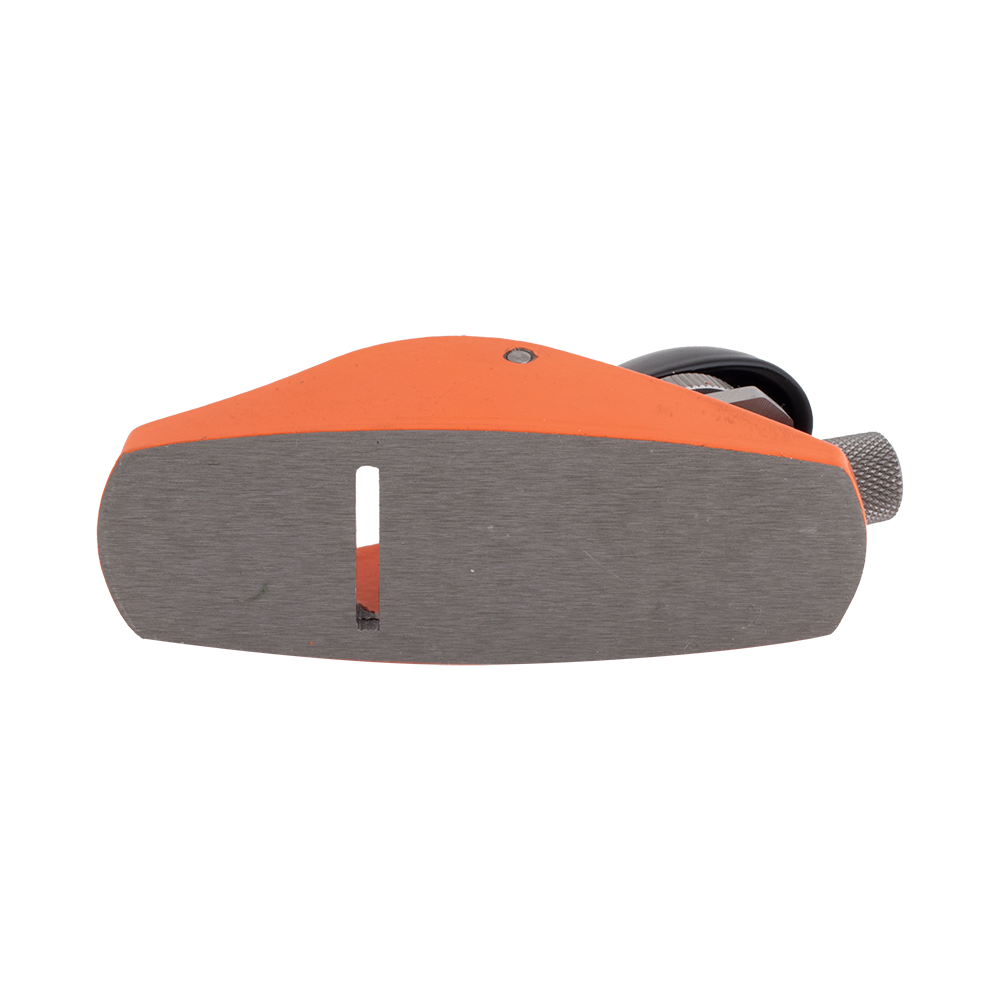

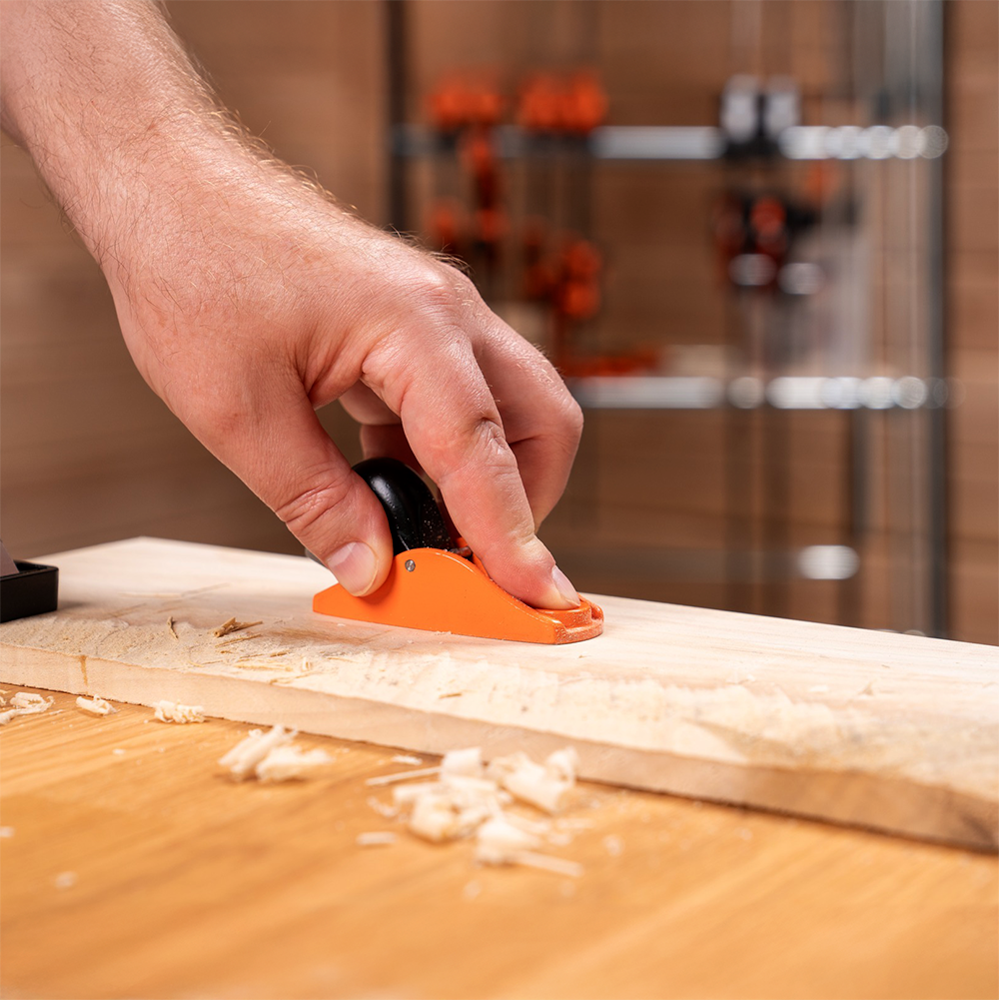

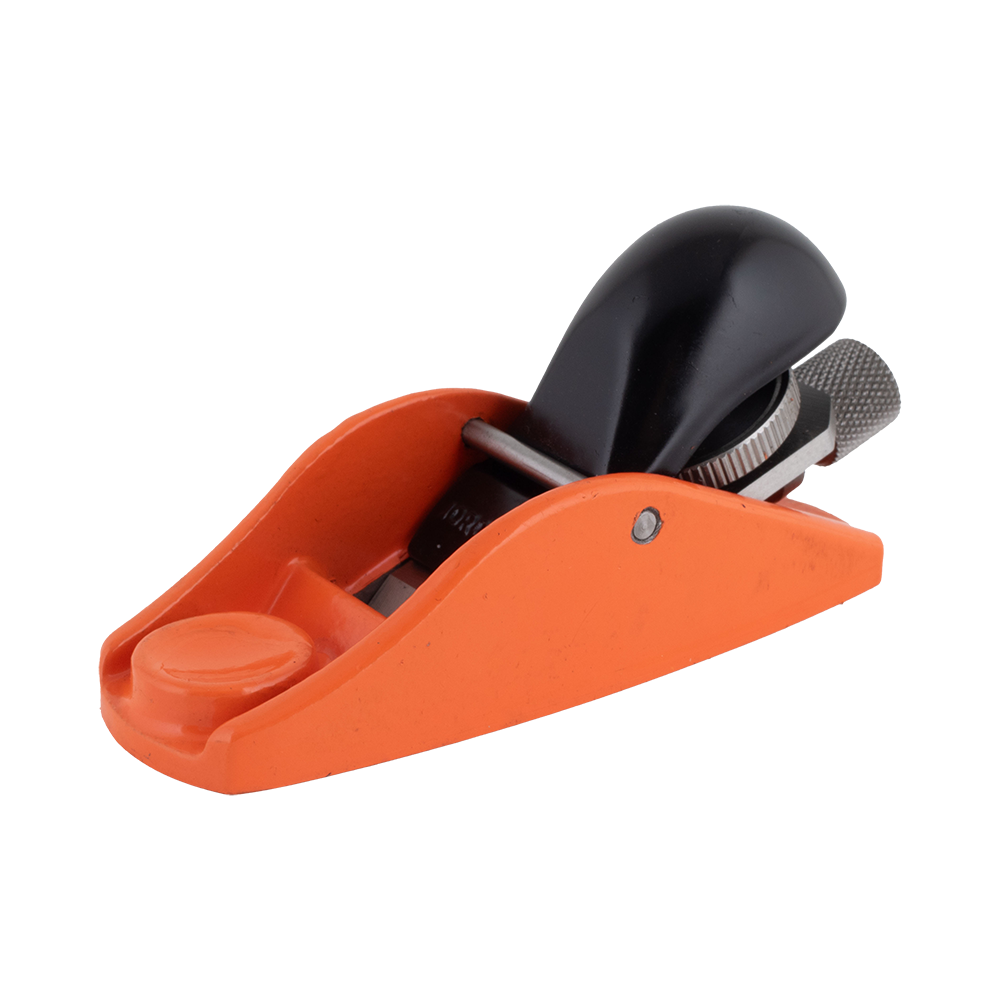

Jorgensen’s Mini Block Plane is small enough to be used in one hand and is designed for model making, instrument building, sculpting and other detail-oriented miniature work. It features a captive nut blade adjuster for precisely controlled depth of cut. The 25° bevelled blade is seated at 20° within the plane, giving an effective cutting angle of 45°. Featuring a heavy gauge (3mm) Pro O1 blade, they offer durability and minimal vibration for a solid cut. Made from ductile iron, they are exceptionally strong and resilient, while stress-relieving metal ensures long-lasting flatness.

Features:

• Heavy gauge (3mm) O1 blade is more durable.
• Ductile iron is far stronger and more resilient.
• Stress relieving metal ensures the machined casting will stay flat over time.
• Adjustment screw helps provide preferred cutting depths.

Specifications:

• Length: 88mm (3.5")
• Width: 32mm
• Blade Length: 50mm
• Blade Width: 22mm
• Blade Thickness: 3mm
• Weight: 198g
