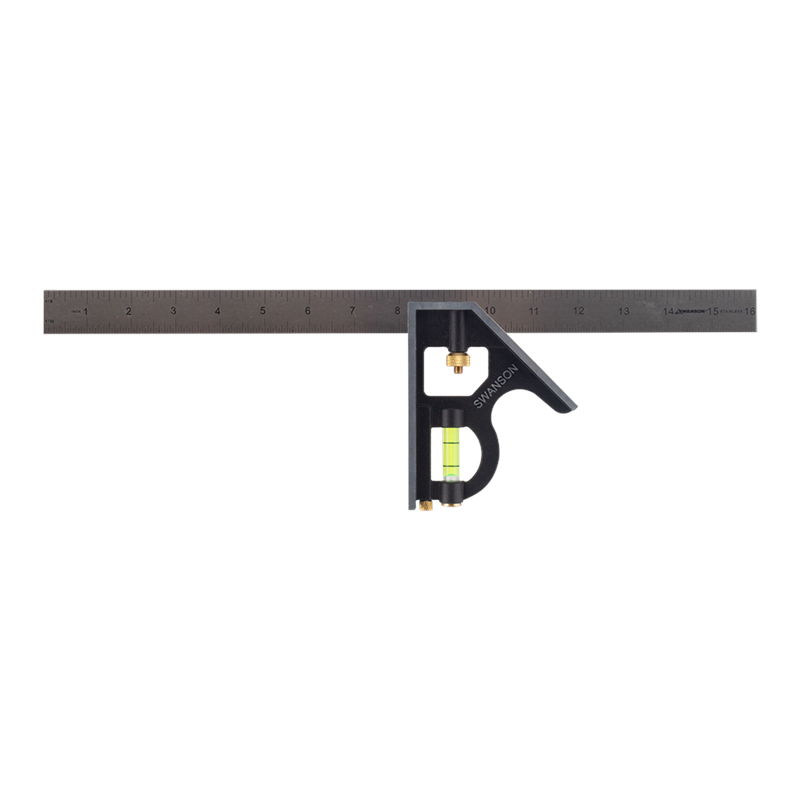

SWANSON 400mm Combination Square

SKU: SWTC134M

Barcode: 038987011344

The Swanson 400mm Combination Square features CNC machined working surfaces for enhanced accuracy, with 45° and 90° marks for precise measurements. Its impact-resistant acrylic level vial is more durable than traditional tube-type vials. Versatile and multifunctional, it serves as a miter square, try square, depth gauge, and more. The precision-machined die-cast zinc body, high-impact composite head, and spring-loaded brass bolt ensure firm, accurate settings. It includes a stainless steel etched blade with all metric mm scale graduations and a screw-fit brass and hardened steel scribe.

Features:

  • Precision machined die-cast zinc body.
  • Hi-impact composite head.
  • Spring loaded, brass bolt assures firm, accurate settings.
  • Etched Stainless Steel blade.
  • Screw fit brass and hardened steel scriber.
  • Impact resistant acrylic vial.
  • All metric - mm scale gradations.
  • Functions as a miter square, try square, depth gauge, and more.

Specifications:

  • Length: 406mm
  • Width: 127mm
  • Depth: 19mm
  • Blade Width: 25mm
  • Blade Thickness: 2mm
  • Blade Material: Stainless Steel
  • Body Material: Die-cast zinc
  • Graduations: mm
  • Weight: 385g
