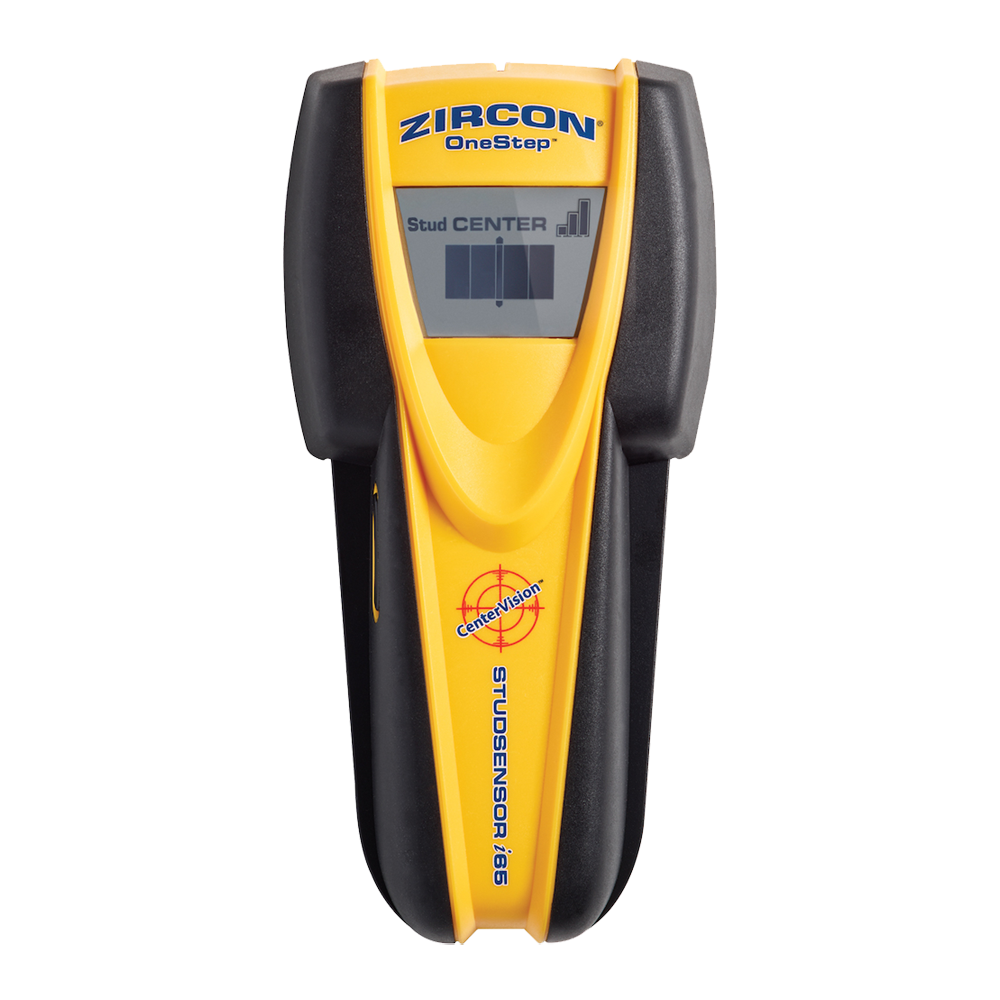

ZIRCON StudSensor™ i65 OneStep™

SKU: ZN-I65

Barcode: 042186618785

Center Finding Stud Finder with Easy-to-Read Display Screen

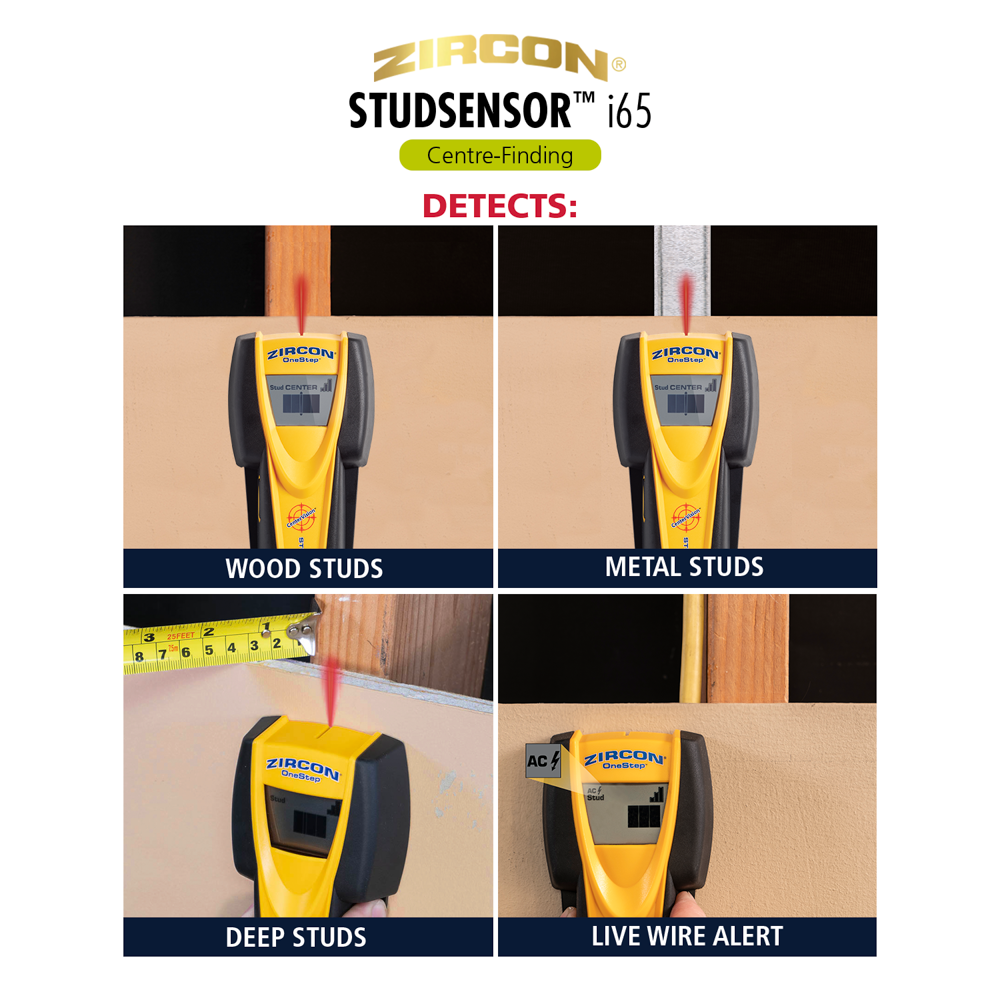

StudSensor™ i65 OneStep® quickly and easily locates the edges and center of wood and metal studs and joists behind walls, floors, and ceilings. Patented CenterVision® technology finds the center of studs in a single pass. Its easy-to-read display screen indicates directions, edges and center of studs, while WireWarning® detection indicates the presence of live AC voltage.

Features:

• StudScan mode locates the edges and center of wood or metal studs up to 3/4 in. (19 mm) deep
• DeepScan® mode doubles the scanning depth to 11/2 in. (38 mm)
• LCD display indicates direction, edges, and center of studs
• Patented SpotLite® Pointing System and audio tone signals when the stud center is reached
• WireWarning® Detection indicates the presence of live, unshielded electrical wiring up to 2 in. (51 mm) deep
• ACT™ (Auto Correcting Technology) automatically corrects common user errors, such as when scanning begins over a stud

Specifications:

• Dimensions: 158mm x 77mm x 34mm
• Weight: 161g (without battery)
• Battery Type: 9V alkaline (not included)
• Depth: StudScan mode is up to 19mm and DeepScan mode is up to 38mm
• Position Accuracy: Up to a depth of 19mm is within 3mm for center, and 5mm for edge. Up to a depth of 38mm is within 6mm for center
• WireWarning Position Accuracy: Typically 90-250 V at 50-60 Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
• WireWarning Depth: In typical wall with Romex wiring, wire can be detected up to 2 in. (51 mm) deep
• Operating Temperature: -7° to 41°C
• Storage Temperature: -29° to 66°C
• Humidity: 5 - 90% RH (non-condensing)
• Water Resistance: Splash and water resistant, not waterproof
