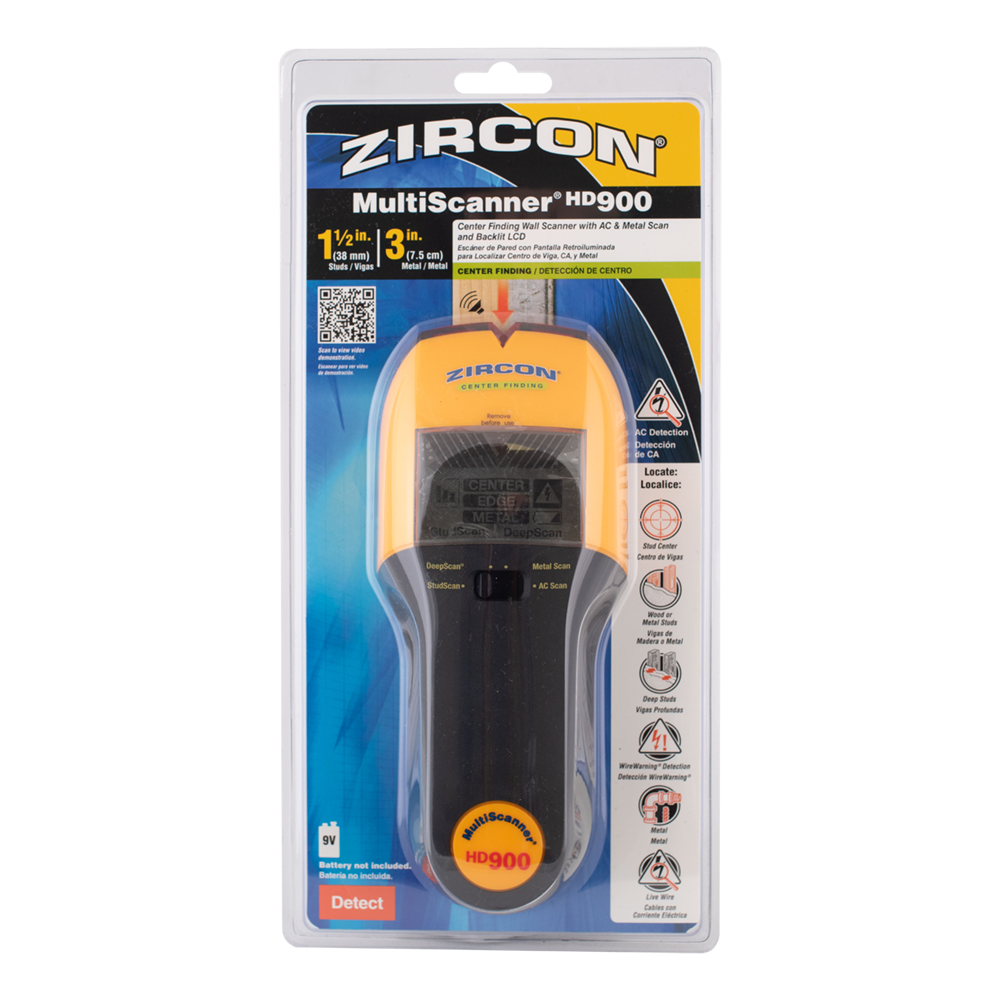

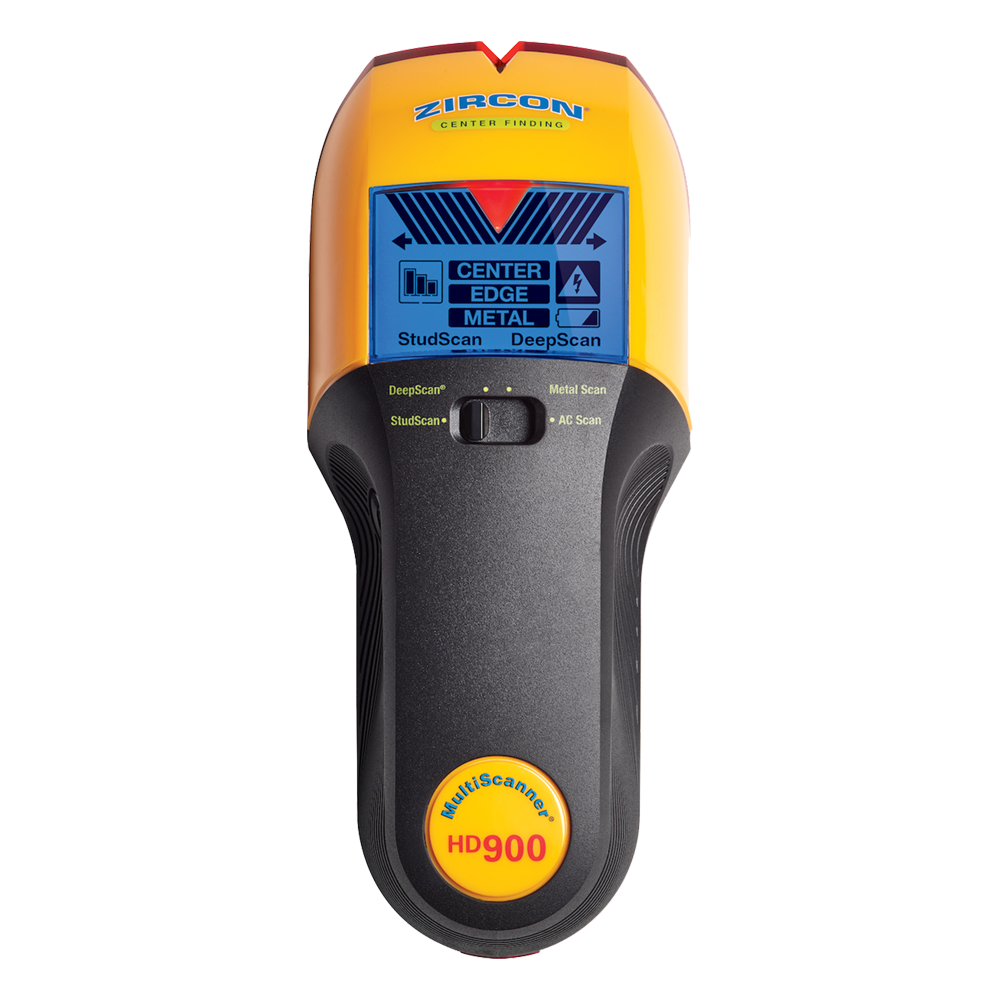

ZIRCON MultiScanner® HD900

SKU: ZN-HD900

Barcode: 042186662597

Multifunction Wall Scanner with AC & Metal Scan and Backlit Display

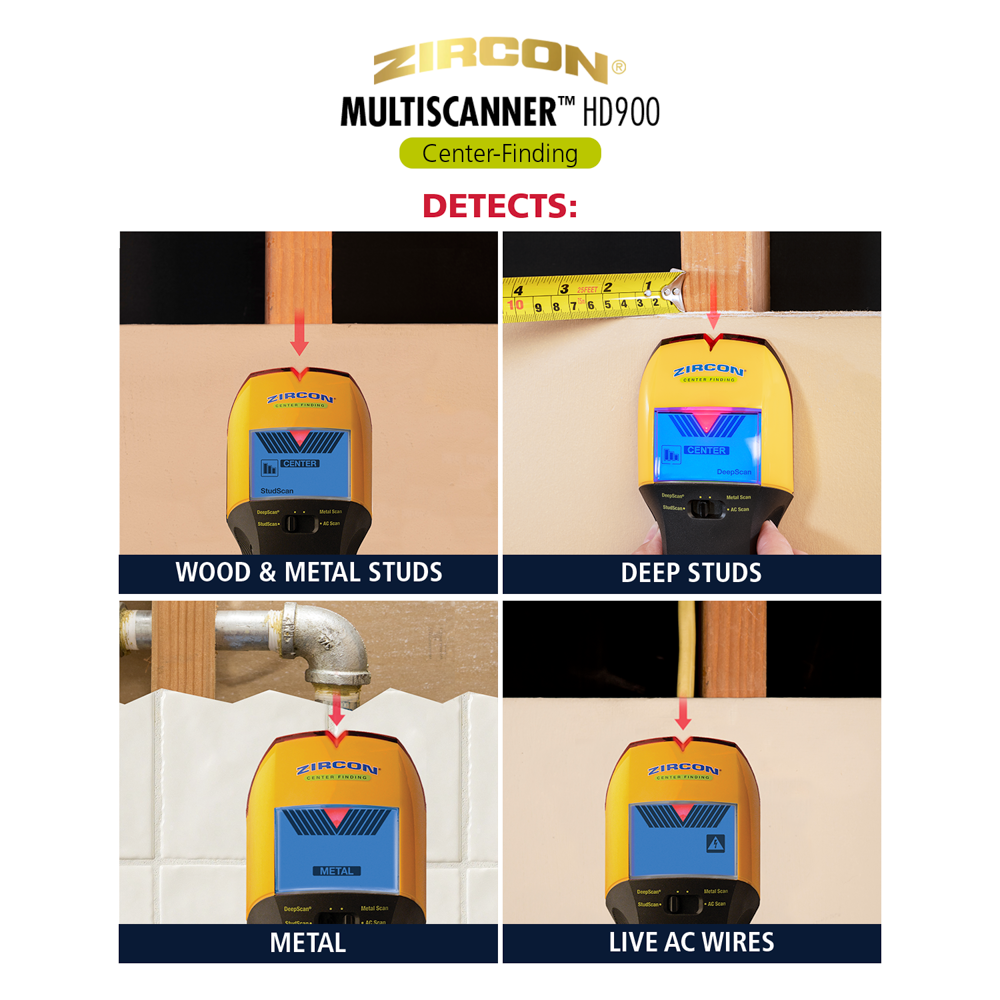

MultiScanner® HD900 quickly and easily locates studs and joists behind walls, floors, and ceilings. It also locates metal as well as live AC electrical wiring. A 4-mode switch makes it easy to change functions, while the ultra-bright display screen, SpotLite® Pointer, and audio tone all indicate the location of the target.

Features:

• StudScan mode locates the center, edges, and direction of wood or metal studs up to 3/4 in. (19 mm) deep
• DeepScan® mode doubles the scanning depth to 11/2 in. (38 mm)
• WireWarning® detection indicates the presence of live, unshielded AC electrical wiring up to 2 in. (51 mm) deep
  in stud and metal scanning modes
• Metal Scan mode locates non-ferrous metal, such as copper pipe, up to 11/2 in. (38 mm) deep, and ferrous metal, such as rebar, up to 3 in. (76 mm) deep
• AC Scan mode locates live, unshielded AC electrical wiring up to 2 in. (51 mm) deep
• ACT™ (Auto Correcting Technology) automatically corrects common errors, such as when scanning begins over a stud
• Backlit LCD display with Target Spotlight indicates the direction and edge of the stud and illuminates when the center of the stud is detected
• Low battery indicator for optimum performance
• Signal Strength indicator helps to distinguish between shallow and deep targets
• SpotLite® Pointer shines an arrow-shaped light on the wall to clearly indicate the center of the stud
• Translucent base and illuminated “V” marker groove for more accurate marking of target location

Specifications:

• Dimensions: 196mm x 82mm x 40mm
• Weight: 227g (without battery)
• Battery Type: 9V alkaline, required
• Depth: StudScan mode is up to 19mm and DeepScan/Metal Scan mode is up to 38mm (76mm for rebar)
• Position Accuracy: Up to a depth of 19mm is within 3mm and up to a depth of 38mm is within 5mm
• WireWarning Position Accuracy: Typically 90-250 V at 50-60 Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
• WireWarning Depth: In typical wall with Romex wiring, wire can be detected up to 2 in. (51 mm) deep
• Operating Temperature: -7° to 41°C
• Storage Temperature: -29° to 66°C
• Humidity: 5 - 90% RH (non-condensing)
• Water Resistance: Splash and water resistant, not waterproof
