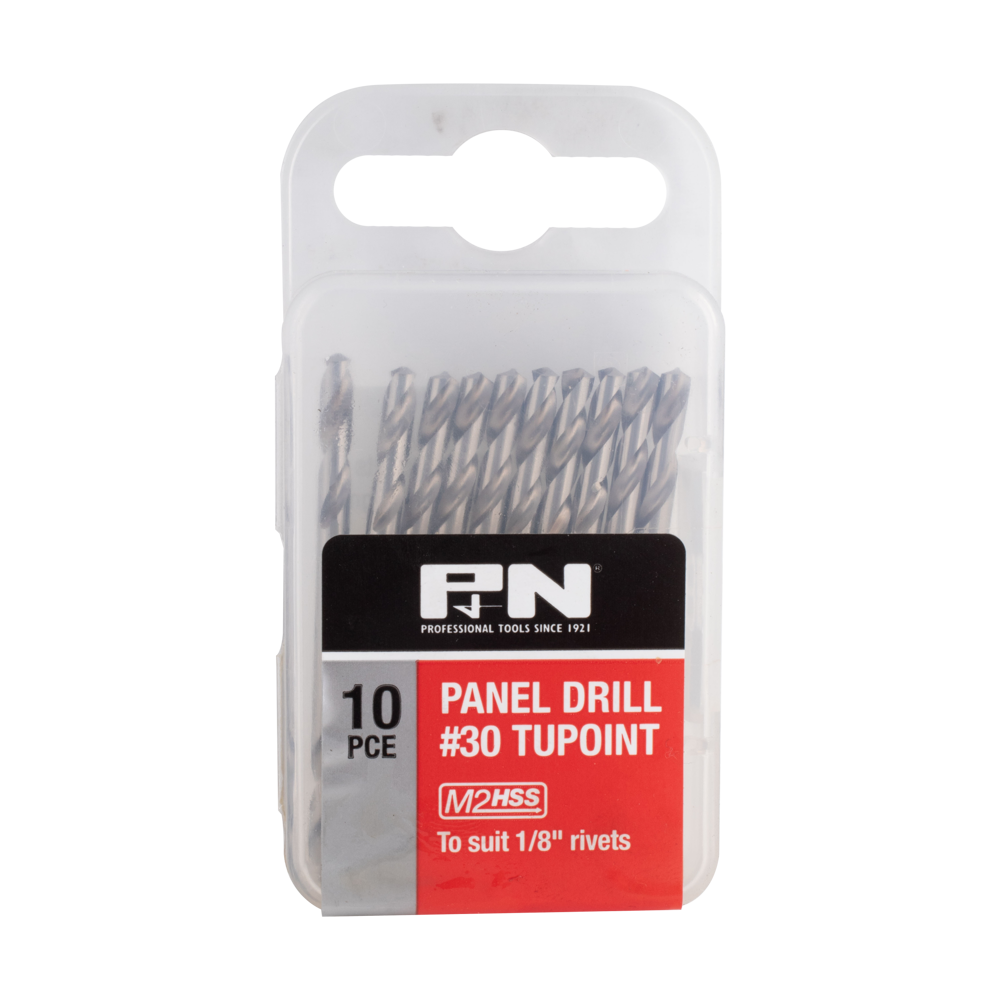

SUTTON P&N HSS Double Ended Panel Drill Bit (#30 x 54mm) - 10 Pack

SKU: SNPN22-330

Barcode: 9311744446469

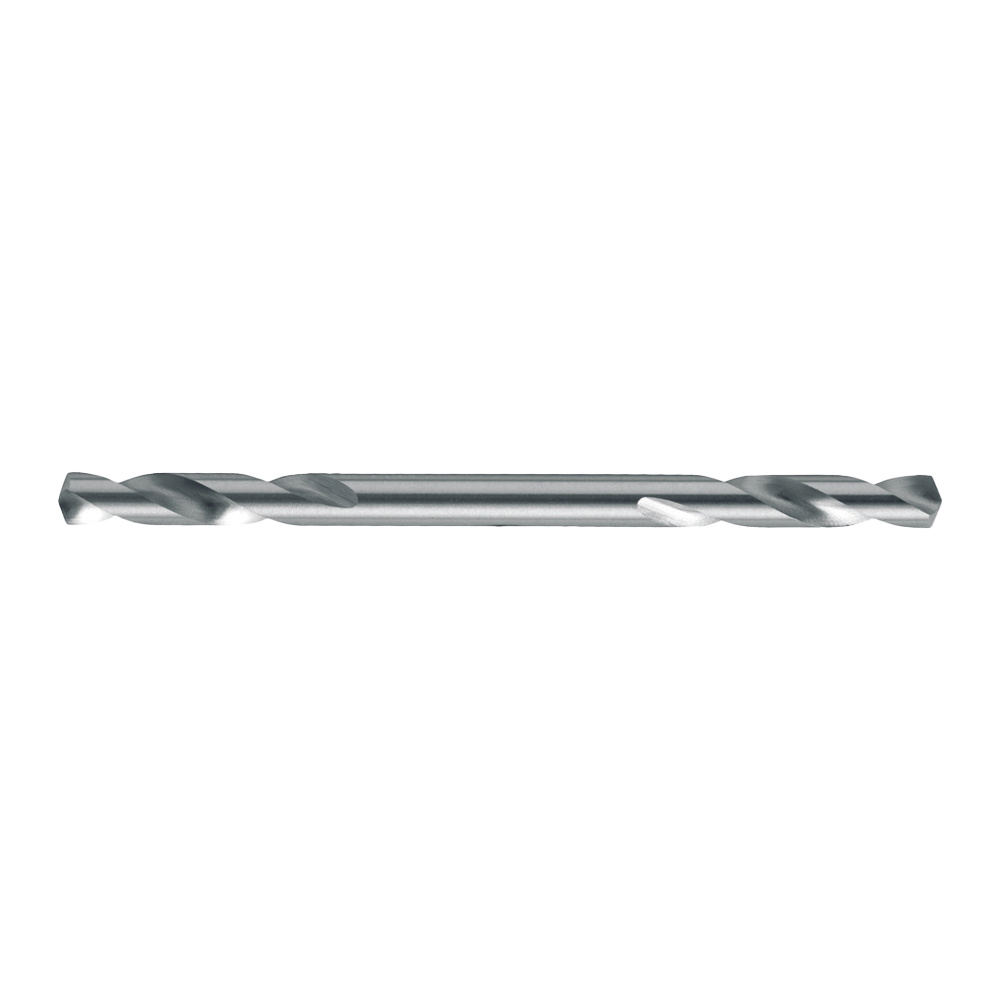

P&N HSS Double Ended Panel Drill Bits are engineered for drilling rivet holes in flat and curved panels used in sheet metal fabrication. Their double-ended design enhances drill life, while a 135° self-centering point minimizes wandering, making them ideal for thin materials. Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance. The bright finish suits general applications in sheet metal, steel, aluminum, and plastic. Ensure chuck jaws are fully tightened for optimal performance.

Features:

• Designed for drilling rivet holes in flat and curved sheet metal panels.
• Double-ended design increases drill life.
• 135° self-centering point minimizes wandering, ideal for thin materials.
• Made from M2 High Speed Steel (HSS) for strength, heat, and wear resistance.
• Bright finish for general purpose applications: sheet metal, steel, aluminum, and plastic.
• Ensure chuck jaws are fully tightened for optimal performance.

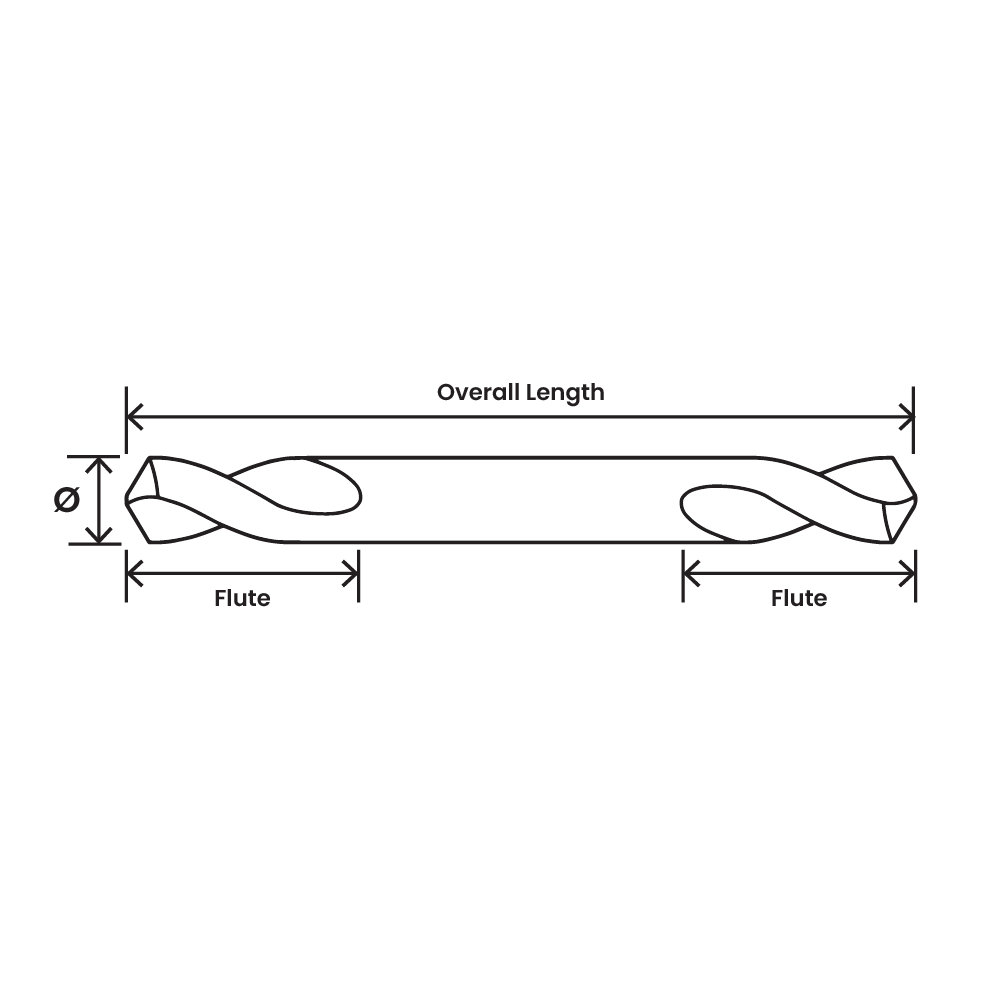

Specifications:

• Diameter: 3.27mm
• Diameter (ga): #30
• Overall Length: 54mm
• Flute Length: 15.9mm
• Rivet Size: 1/8"
• Quantity: 10 Pack
• Packaging: Plastic Casing
• Material: HSS
• Application: Steel / Aluminium
• Point Angle: 135°
• Weight (In Packaging): 37g
