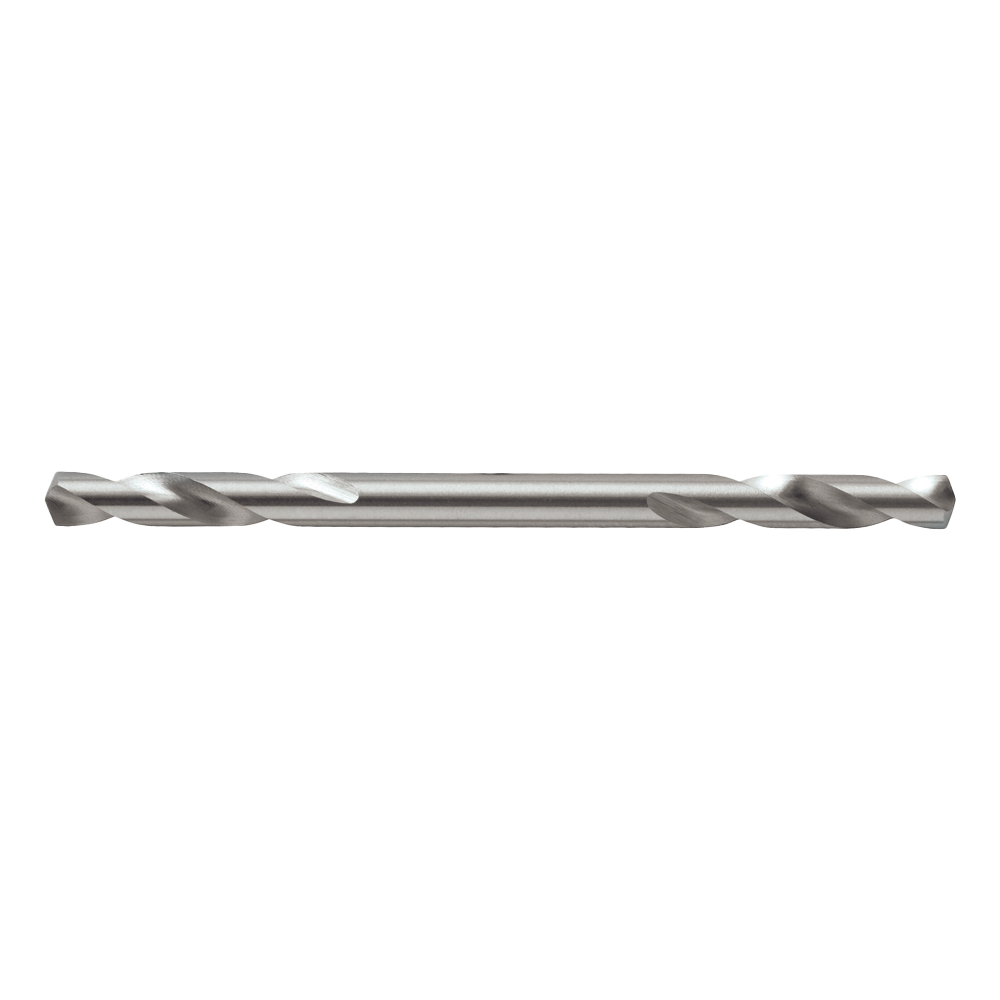

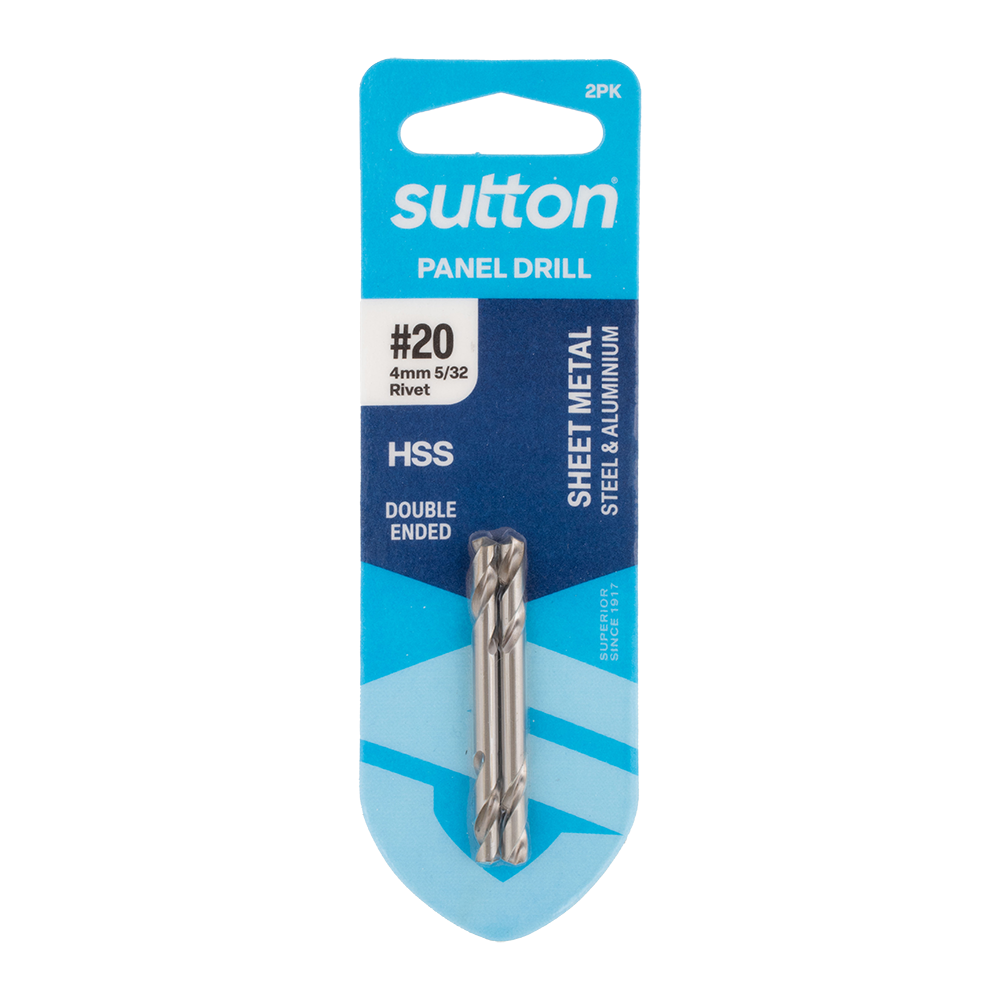

SUTTON HSS Double Ended Panel Drill Bit (#20 x 54mm) - 2 Pack

SKU: SN222-20

Barcode: 93223201

Sutton HSS Double Ended Panel Drill Bits are engineered for drilling rivet holes in flat and curved panels used in sheet metal fabrication. Their double-ended design enhances drill life, while a 135° self-centering point minimizes wandering, making them ideal for thin materials. With a flute length suited for shallow hole drilling up to 1.25mm x diameter, they are made from M2 High Speed Steel, providing strength, heat, and wear resistance. The bright finish suits general applications in sheet metal, steel, aluminum, and plastic. Ensure chuck jaws are fully tightened for optimal performance.

Features:

• Designed for drilling rivet holes in flat and curved sheet metal panels.
• Double-ended design increases drill life.

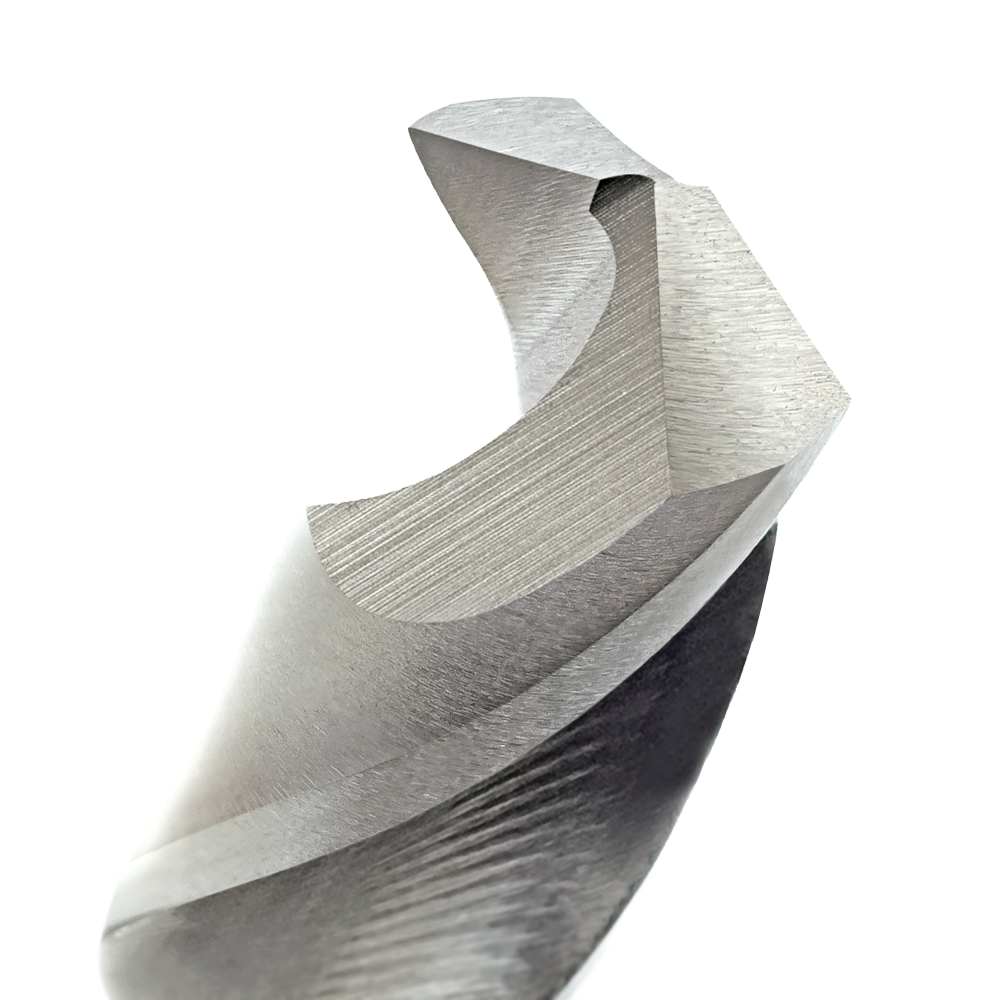

• 135° self-centering point minimizes wandering, ideal for thin materials.
• Flute length for shallow hole drilling, no deeper than 1.25mm x diameter.
• Made from M2 High Speed Steel (HSS) for strength, heat, and wear resistance.
• Bright finish for general purpose applications: sheet metal, steel, aluminum, and plastic.
• Ensure chuck jaws are fully tightened for optimal performance.

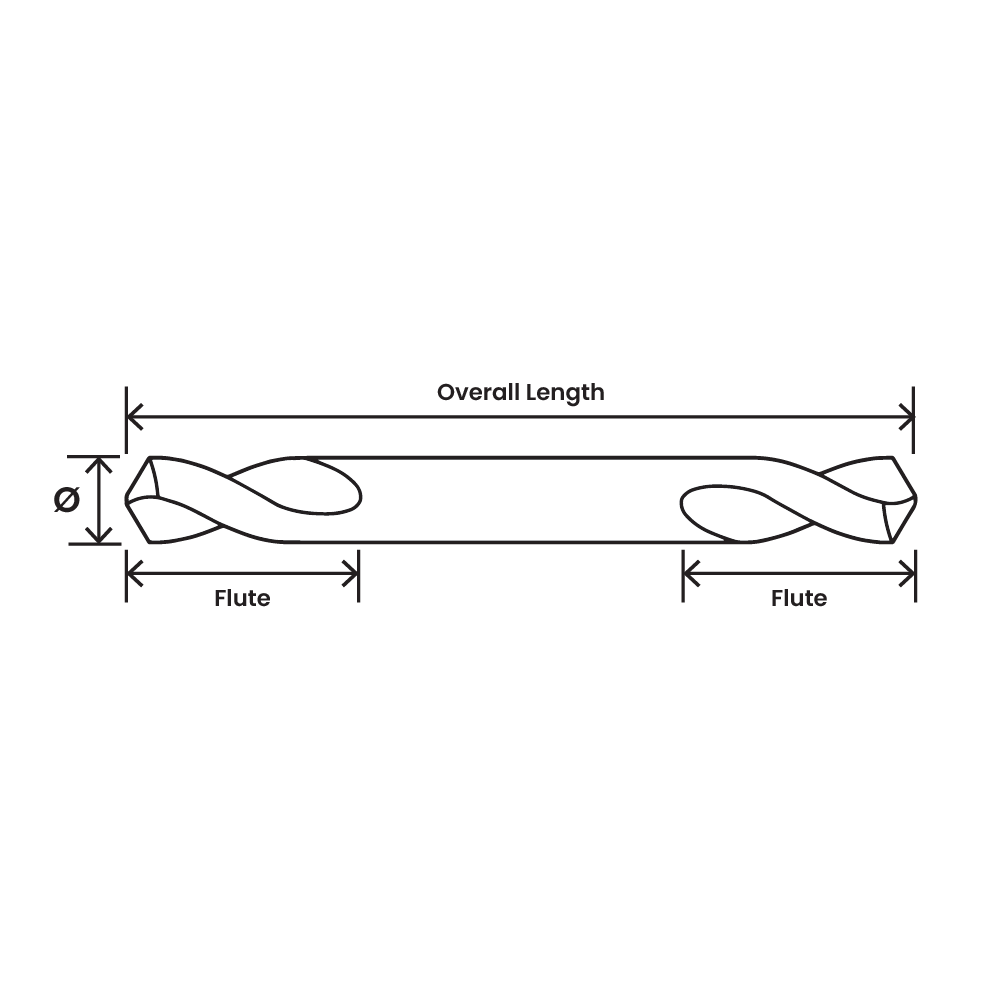

Specifications:

• Diameter: 4.09mm
• Diameter (ga): #20
• Overall Length: 54mm
• Flute Length: 15.9mm
• Rivet Size: 4mm & 5/32"
• Quantity: 2 Pack
• Packaging: Carded
• Material: HSS
• Application: Steel / Aluminium
• Point Angle: 135°
• Weight (In Packaging): 10g
