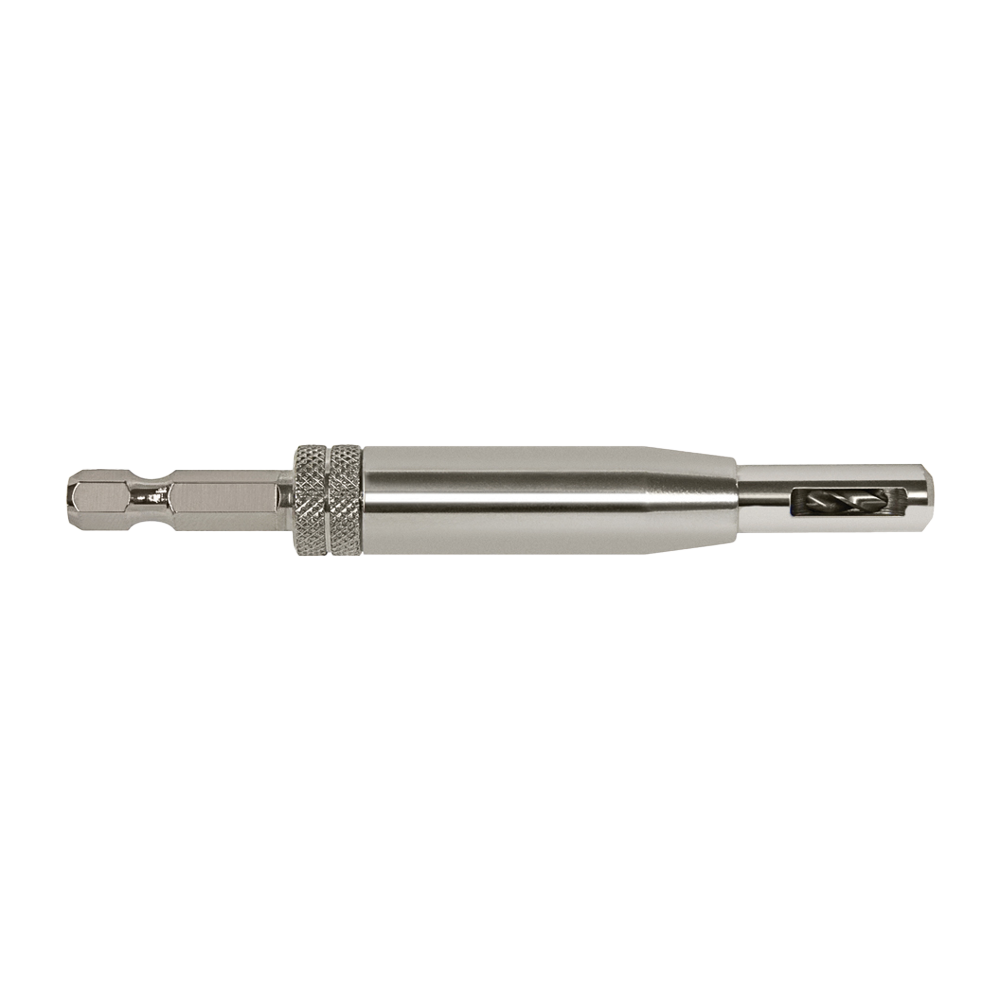

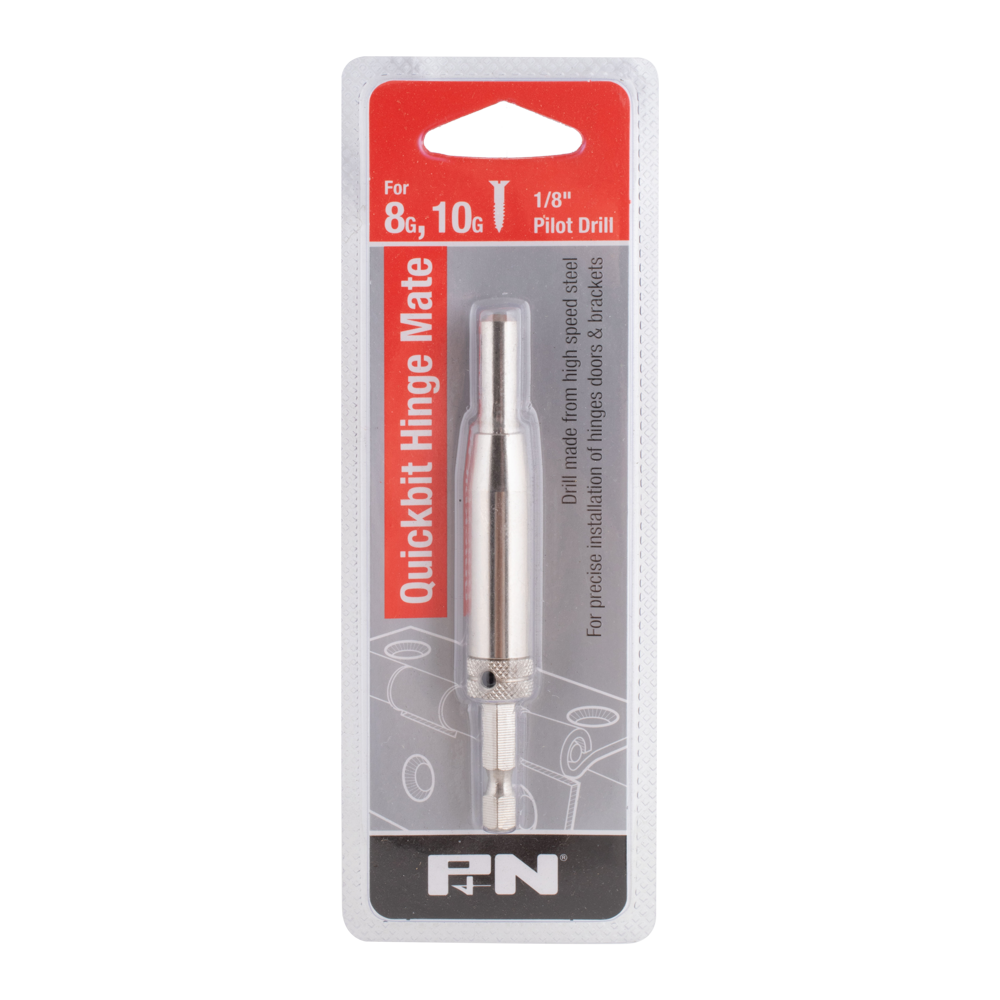

SUTTON P&N Quickbit Hinge Mate (1/8" for 8g & 10g Screws)

SKU: SNPNPD-018

Barcode: 9311744435852

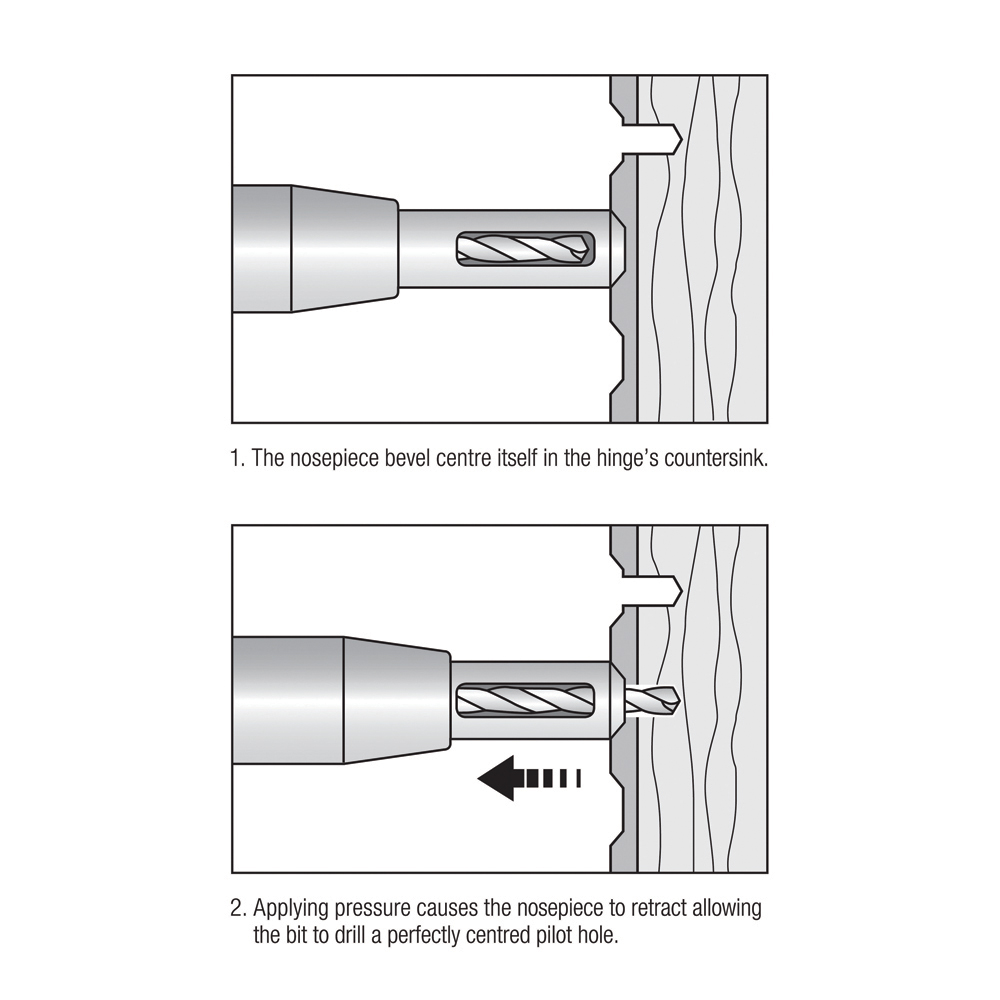

P&N Quickbit Hinge Mate is ideal for drilling exact pilot holes in cabinet door hinges and door butts. The nosepiece bevel centers itself in the hardware’s countersink, applying pressure to the bit causes the nosepiece to retract, allowing the bit to drill a perfectly centered pilot hole. The P&N Quickbit range has been specifically developed to provide quick change-over of standard 1/4? hex shank power bits. This comprehensive range of power drill bits and accessories is for trade and home handyman use and allows the operator to simply and efficiently use one power tool for all operations.

Features:

• 1/4" hex shank suits quick change adaptors.
• Spring loaded outer guide with chamfered head makes accurate pilot holes for hinges.
• Adjustable drill depth suits varying screw lengths.
• Designed to drill a perfectly centered pilot hole.
• Made from M2 High Speed Steel, offering strength, heat & wear resistance.

Specifications:

• Diameter: 3.18mm (1/8")
• Overall Length: 100mm
• Shank: 1/4" (6.35mm)
• Shank Shape: HEX
• Screw Gauge: 8g, 10g
• Quantity: 1 Pack
• Packaging: Carded
• Material: HSS
• Application: Wood
• Weight (In Packaging): 57g
