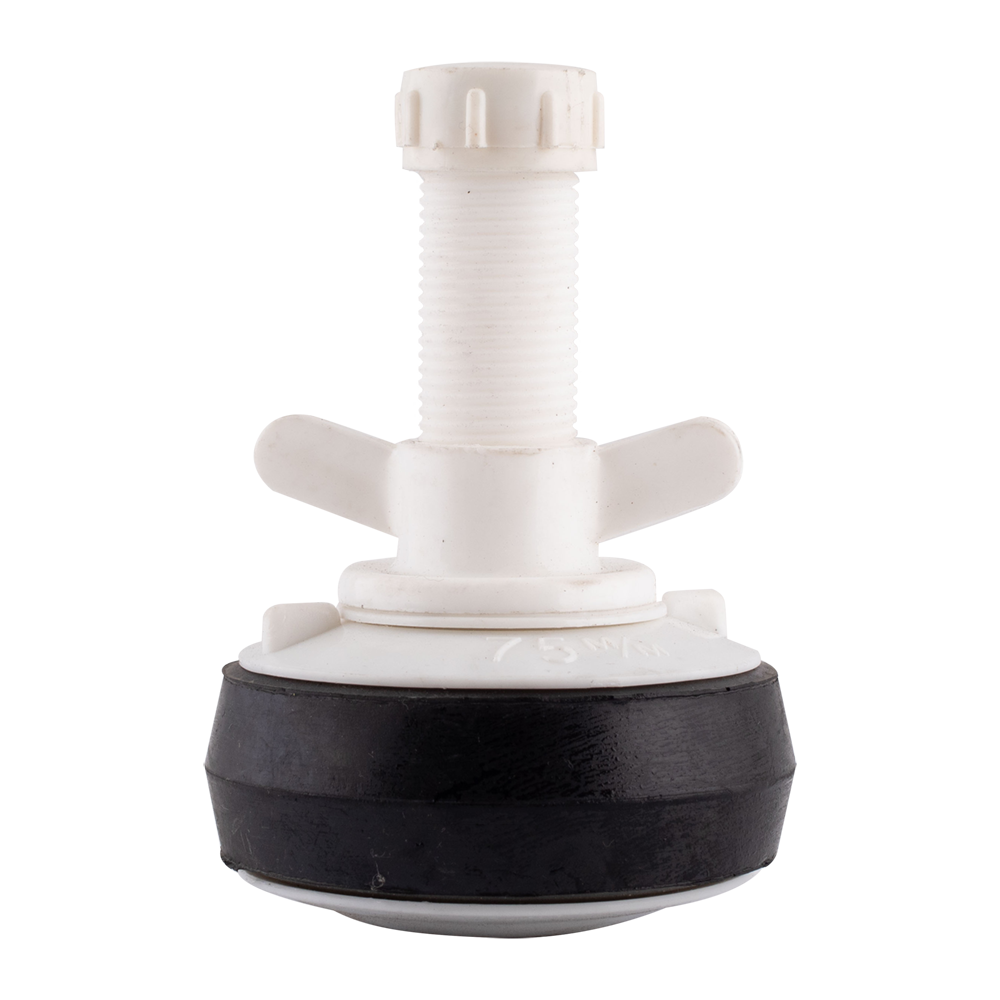

BAILEY 75mm Nylon Drain Test Plug

SKU: MM1377-075

Barcode: 5016729026066

These Bailey centre locking drain testing plugs have been made with a nylon plastic body and a strong rubber ring that can be expanded to fit tightly inside pipes for drain and sewer pressure testing. It can also be used as a temporary or permanent pipe closure. Bailey Products are a leading manufacturer of a wide range of testing/stopping plugs. The quality of our products are widely recognised as being of the highest standard.

How to use:

When inserted into the pipe end, tightening the wing nut of the central screw draws the farthest plate toward the front plate, pushing the rubber seal against the pipe wall to form a seal. The hollow screw can then be used as the test hose connector.

Features:

• For pressure testing of drain and sewer pipes.
• To form a temporary or permanent pipe closure.
• Robust product that can be re-used.
• Quality is recognized as the highest standard.

Specifications:

• Diameter: 75mm (3")
• BSP Outlet Size: 1/2"
• Operating Range: 74-87mm
• PSI: 7
• Wingnut Material: Plastic
• Cap Material: Plastic
• Weight: 102g
