PONY JORGENSEN 300mm Deep-Reach Throat Bar Clamp

SKU: AJP4512

Barcode: 044295451208

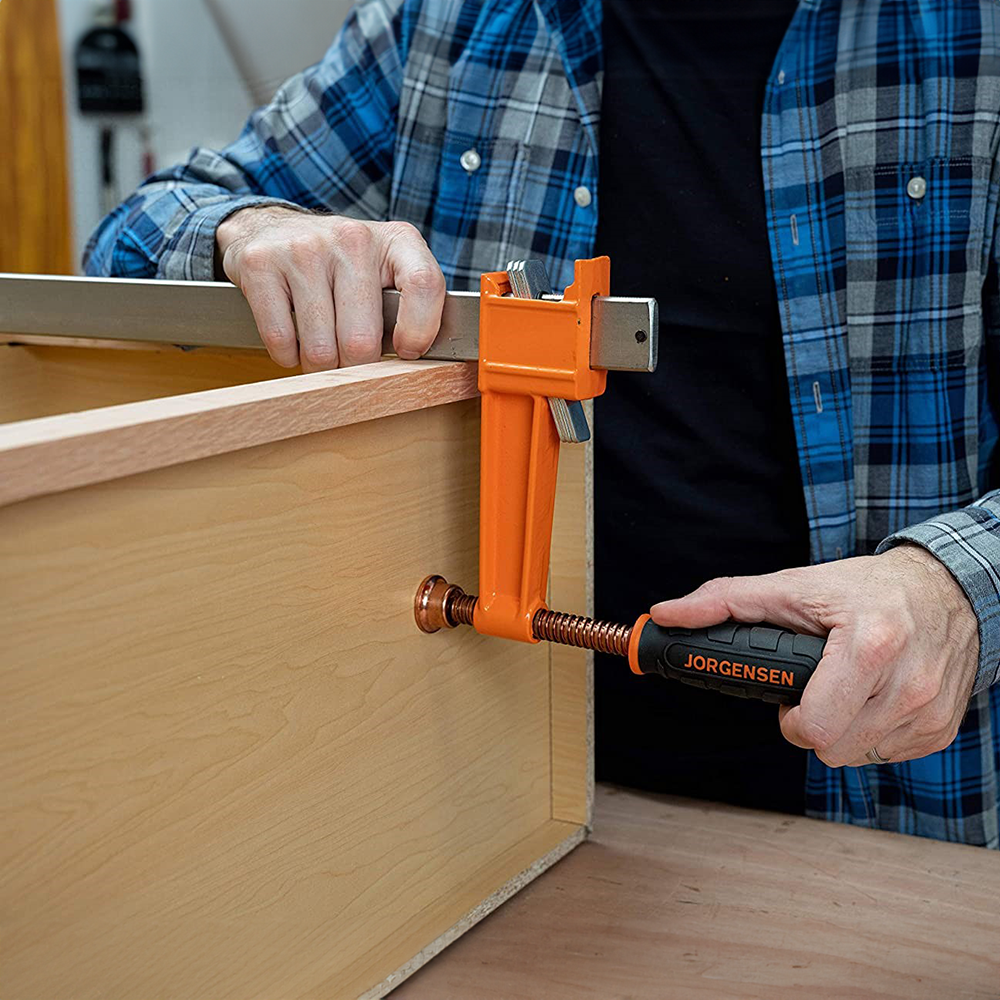

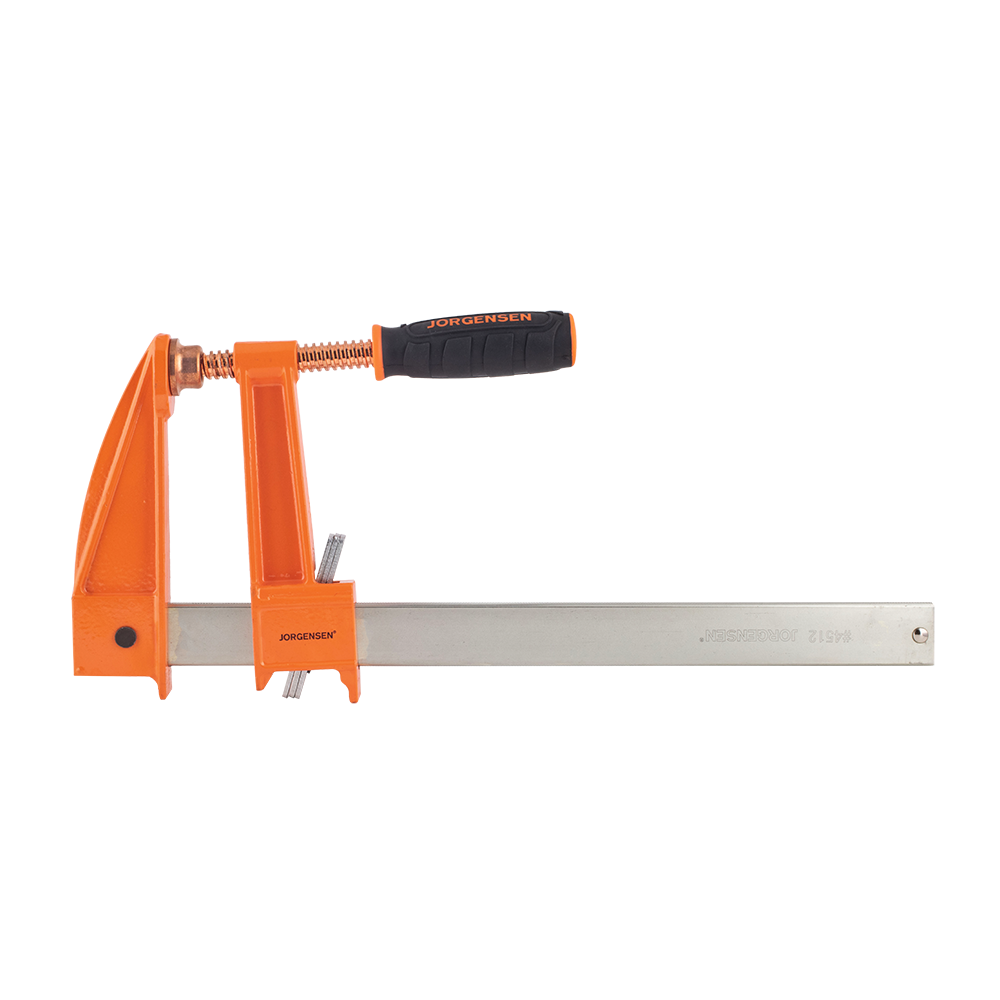

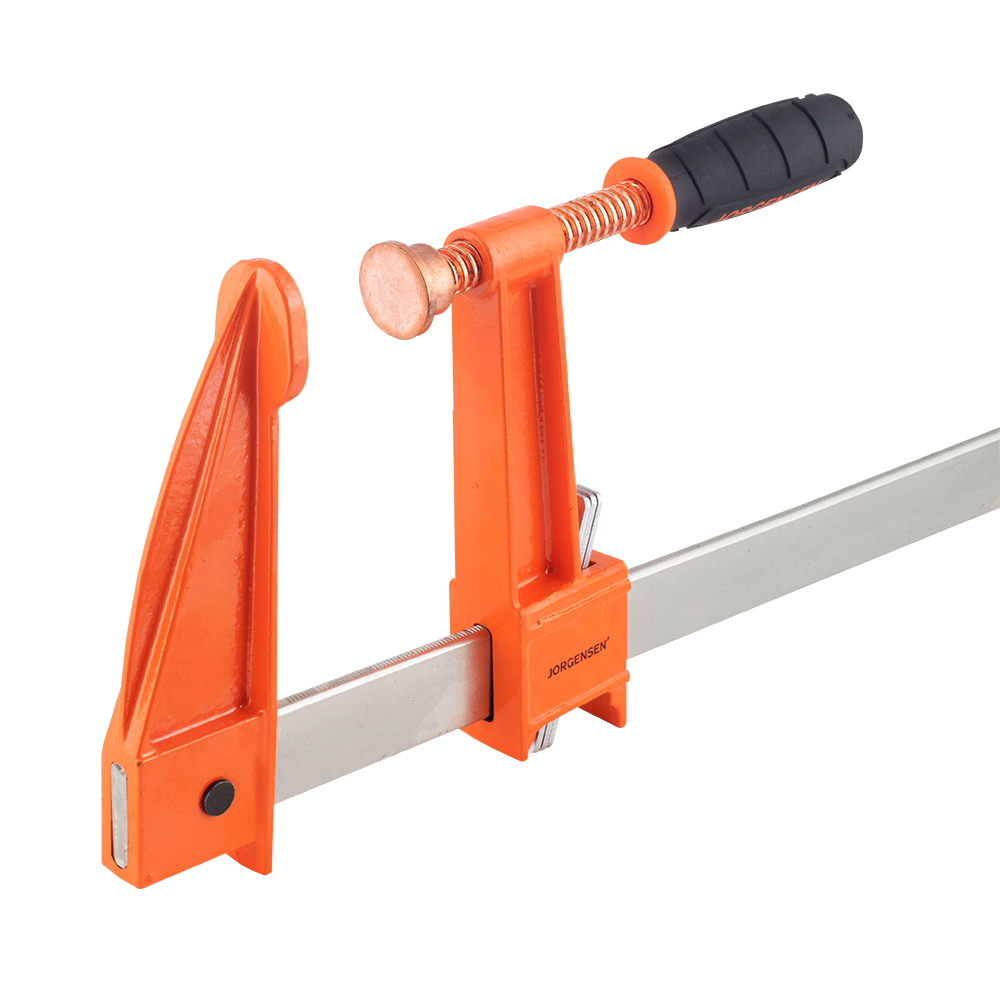

When your project calls for a deeper hold, reach for Jorgensen deep throat steel bar F-clamps. They contain all the same high quality materials as our traditional steel bar clamps but with five inch reach. Cast iron stationary and sliding heads with an orange, powder coated finish are merged with a high carbon, rust resistant steel bar that packs a whopping 80,000 pounds per square inch of tensile strength. Welders take note: the copper plated screws, handles, and swivels help protect against weld spatter in welding jobs. The clamps are equipped with a soft grip handle for added comfort. Furthermore, our innovative multiple-disc-clutch design enables the sliding head to securely hold at any desired position along the bar.

Features:

• Five-inch deeper reach.
• The stationary and sliding heads are made of cast iron.
• Orange, powder-coated finish, providing a protective and attractive coating.
• Features a high-carbon, rust-resistant steel bar for long-lasting performance.
• Welding Protection: Copper-plated screws, handles, and swivels protect against weld spatter in welding jobs.
• Soft Grip Handle.
• Multi-disc-clutch design enables secure holding at any desired position along the bar.

Specifications:

• Max Opening: 304mm (12")
• Reach: 127mm (5")
• Clamping Force: 544kg (1200lb)
• Bar: 35mm (1 3/8") x 8mm (5/16")
• Weight: 2541g
