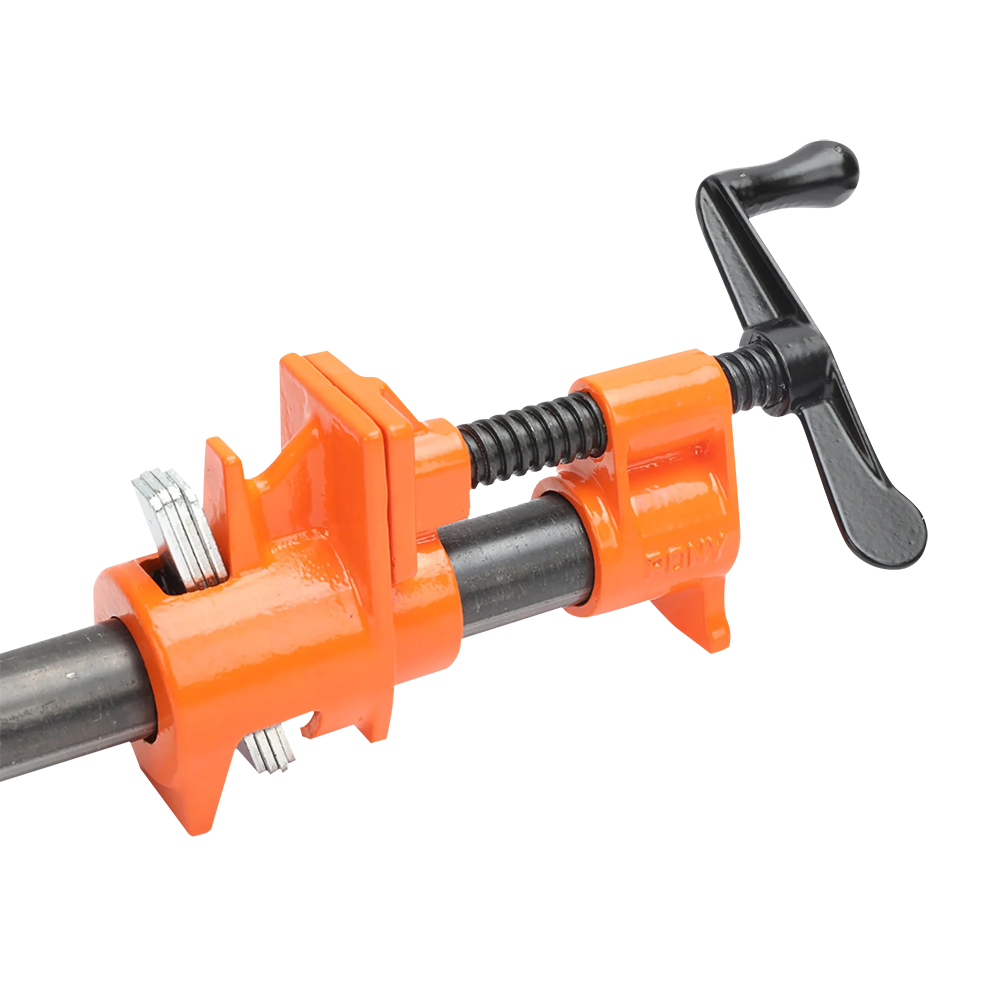

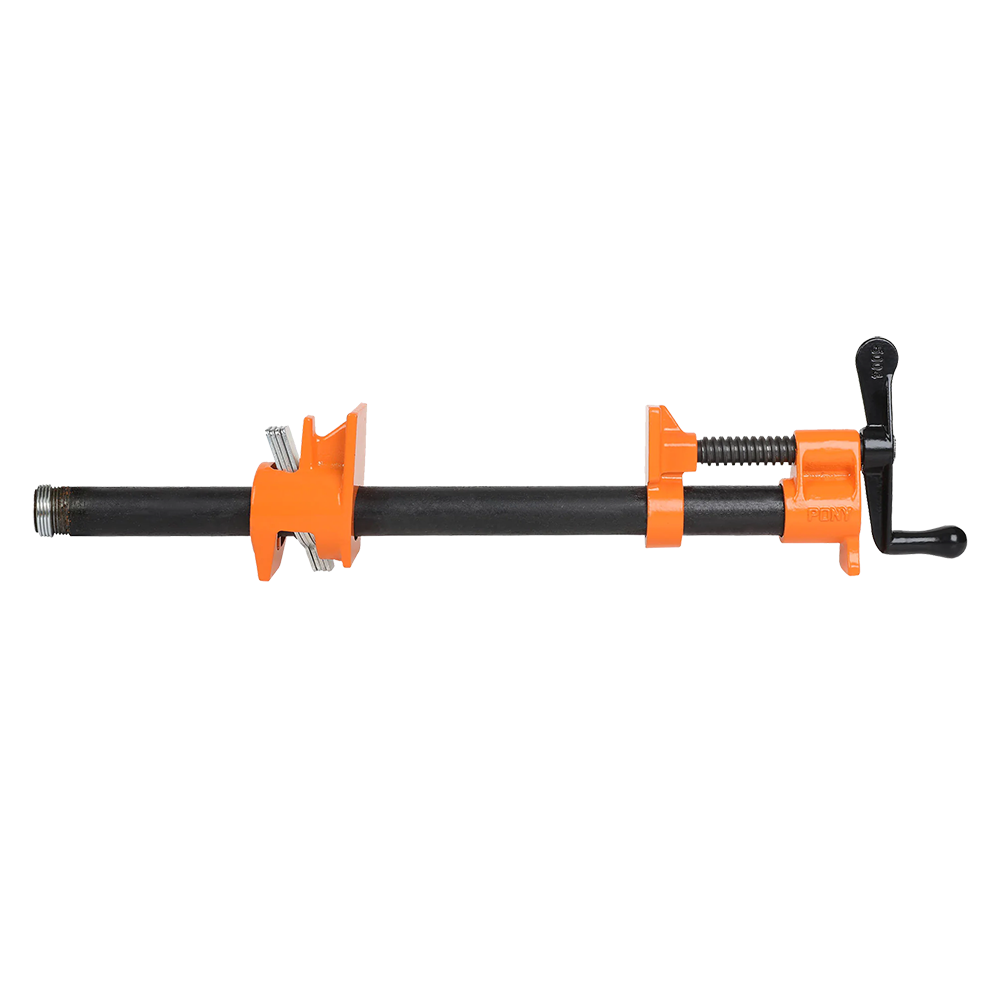

PONY JORGENSEN Pipe Clamp Fixture for 3/4" Pipes

SKU: AJP50

Barcode: 044295050005

The iconic Pony 3/4" inch pipe clamp has become America’s most popular and widely used pipe clamp fixture design. Its original steel multiple-disc-clutch configuration guarantees a steadfast grip and immediate adjustment at any position along the pipe, eliminating concerns of slippage or pipe damage. This versatile fixture accommodates any length of 3/4" - 14 NPT pipe, provided that the pipe exceeds the workpiece by at least seven inches. Meticulously crafted from robust and enduring iron casting, it ensures longevity and durability. With a clamping face measuring 1 3/4 inches, this fixture empowers craftsmen with steadfast and efficient workholding capabilities.

Features:

• Works with 3/4 inch black or galvanized threaded pipe.
• Pipe is not included.
• Coil spring stop prevents tail piece from sliding off.
• Made of durable cast iron.
• Multi-disc clutch design allows a secure hold and instant adjustment.
• Works with any length pipe, as long as it is 7" longer than workpiece.

Specifications:

• Pipe Used: 3/4" - 14 NPT Pipe
• Handle: Crank
• Clamping Face: 1 3/4" square
• Max. Outer Diameter: 1.05" (26.67mm)
• Weight: 830g
