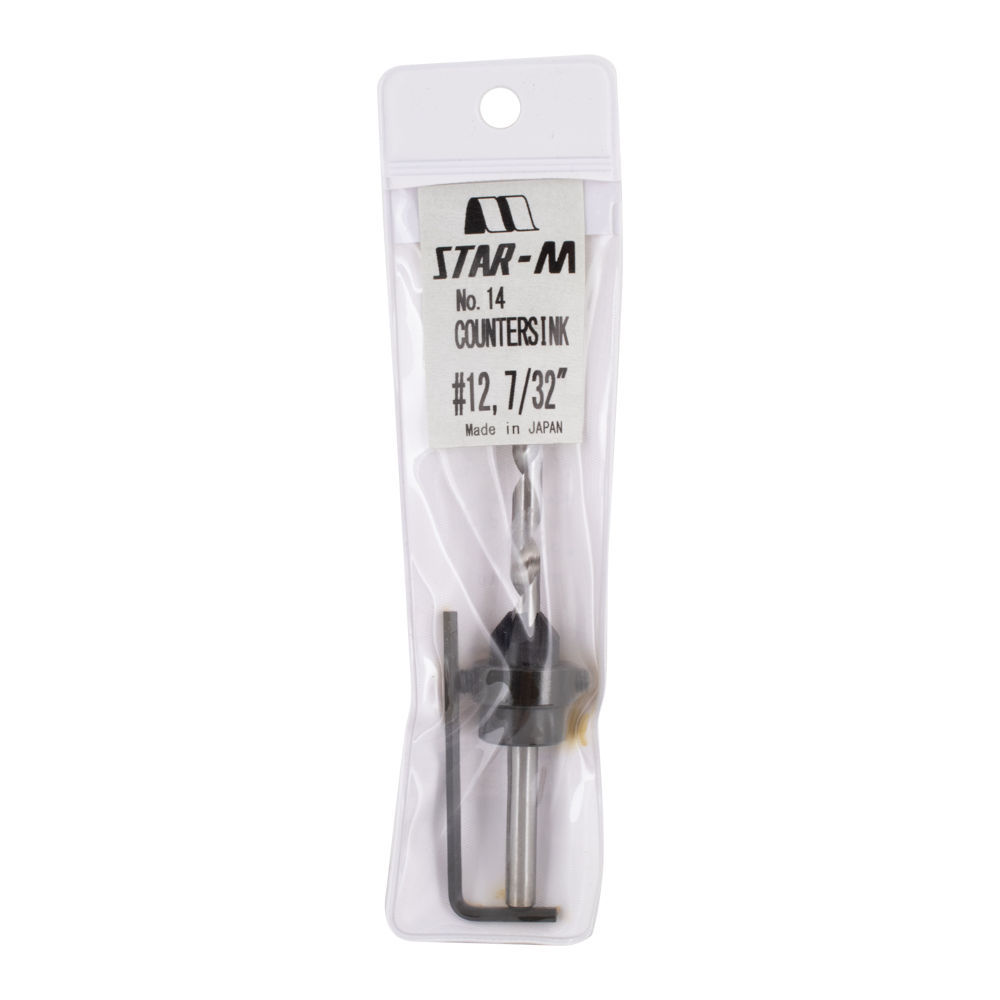

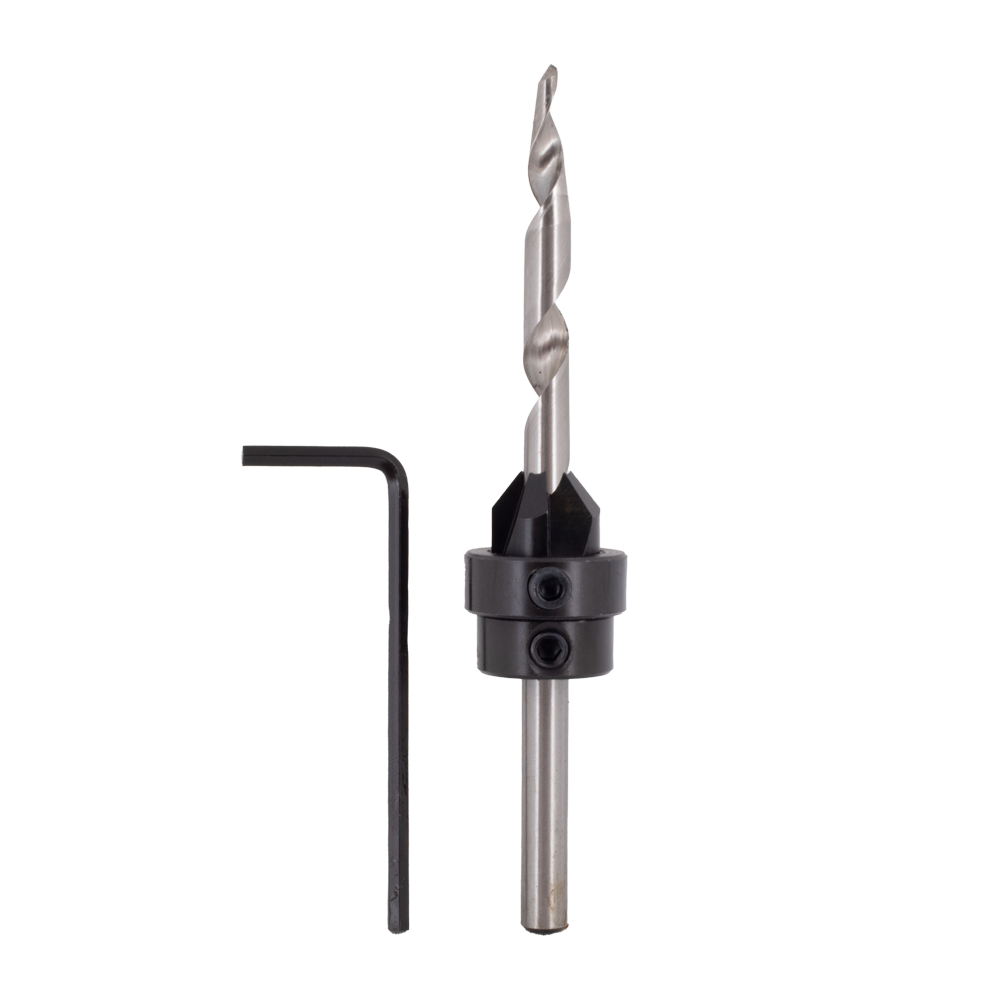

STAR-M 7/32" Adjustable Countersink / Bore

SKU: SM14-12

Barcode: 4962660014123

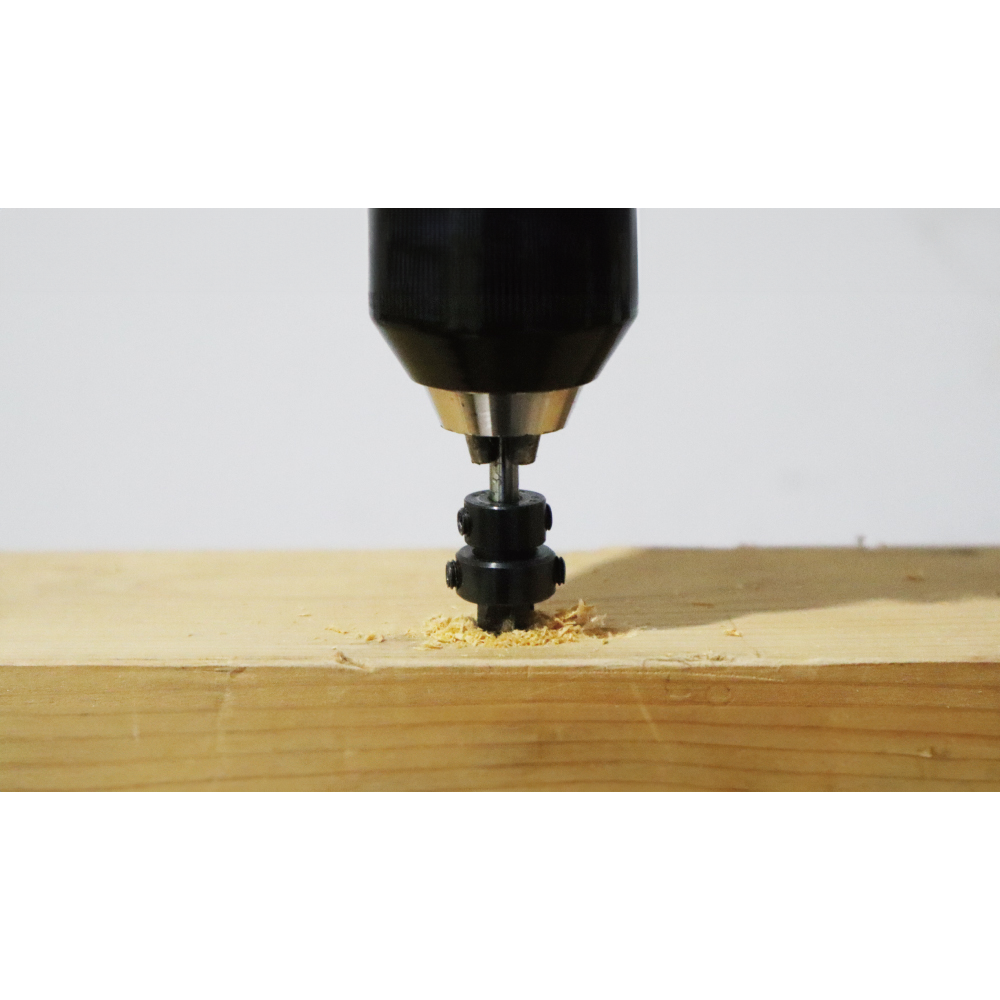

The STAR-M Adjustable Countersink / Bore is a versatile tool that streamlines wood preparation for threads and screw heads in a single operation. With its tapered tips, it ensures a snug fit for classic screws, while the pilot bits' fast pitch design makes quick work of wood. The flute countersink bodies create clean, sharp holes, and the adjustable stop collar permits precise screw head placement, flush with the surface. Crafted from high carbon steel for durability, this tool is best used with electric power drills and cordless drills over 14.4 volts, making it an essential choice for woodworking projects that demand precision and efficiency.

Features:

• In one operation you can completely prepare the wood for the threads and screw heads.
• Tapered tips for tight-fitting classic screws.
• Pilot bits feature a single twist, fast pitch design for wood.
• For flute countersink bodies leave a clean, sharp hole.
• Adjustable stop collar allows you to set the screw head flush with the surface.
• RPm range: less than 2500rpm.
• Made in Japan.

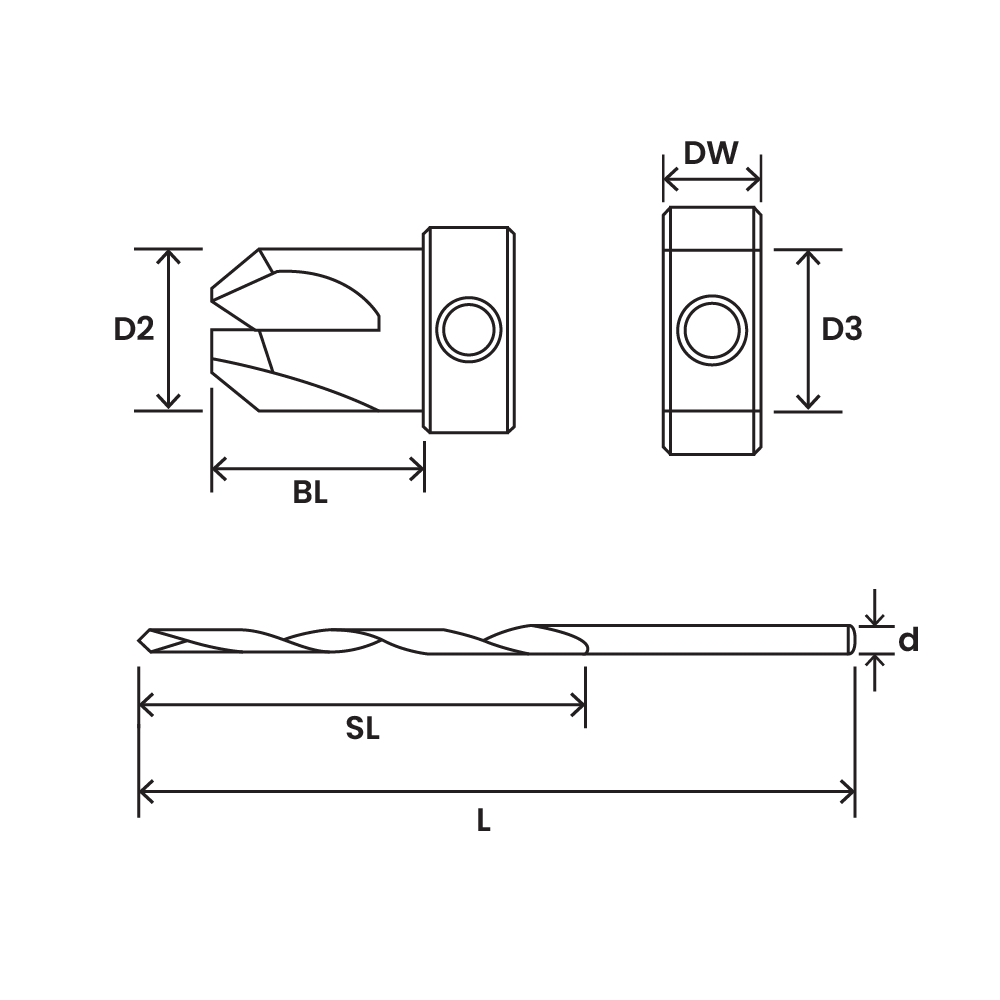

Specifications:

• Wood Screw No: #12 Screws
• Taper Drill Diameter (d): 7/32" (5.6mm)
• Overall Length (L): 100mm
• Spiral Length (SL): 60mm
• Countersink Bore Size (D2): 1/2" (12.7mm)
• Countersink Bore Length (BL): 16.5mm
• Depth Stop Width (DW): 7mm
• Depth Stop Size (D3): 1/2" (12.7mm)
• Shank Shape: Round
• Material: High Carbon Steel
• RPm Range: < 2500 rpm
• Weight: 38g
