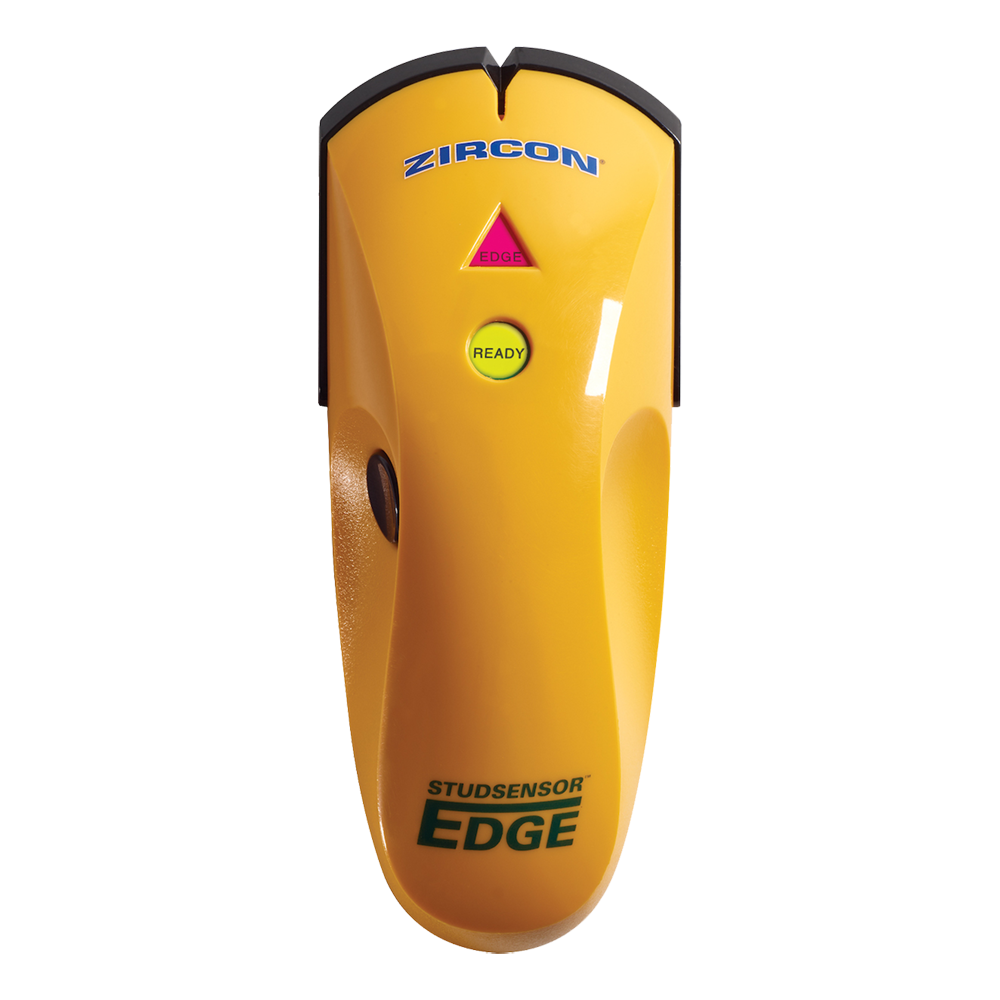

ZIRCON StudSensor™ EDGE

SKU: ZN-EDGE

Barcode: 042186630763

Stud Finder with SpotLite® Pointing System and a Revolutionary New Shape

The StudSensor™ EDGE is a complete redesign of Zircon’s most popular tool. Its new patented pinch grip design features a body molded specifically to fit comfortably in the palm of your hand. The end result is a secure hold in either hand at any angle providing a new level of ease, comfort, and utility to the user. The EDGE also features a user-friendly interface and improved SpotLite® Pointing System which shines a bright arrow-shaped beam on the wall to clearly identify the edge of the target. The bevy of improvements and the revolutionary new design make it our best entry-level stud finder yet.

Features:

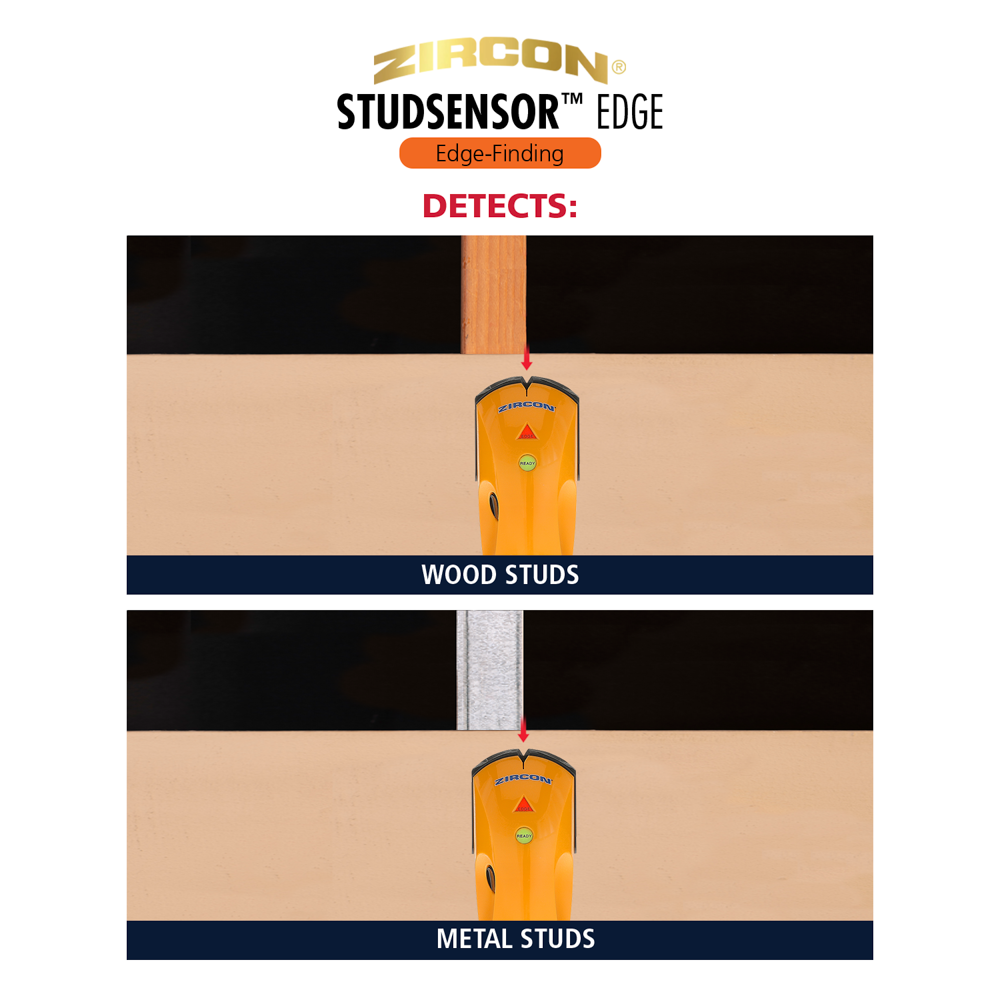

• Locates the edges of wood or metal studs up to ¾ inch (19 mm) deep
• New “Ready” light indicates when calibration has completed successfully
• New “Edge” light indicates when the tool is over a stud edge
• Updated SpotLite® Pointer shines an arrowshaped light on the wall to mark the target
• Should scanning begin over a stud, Zircon’s patented “over-the-stud” indicator alerts the user to start the scan in a new location
• New ergonomic design can be comfortably held in either hand at any angle

Specifications:

• Dimensions: 136mm x 55mm x 34mm
• Weight: 56.3g (without battery)
• Battery Type: 9V alkaline, required
• Depth: ¾ in. (19 mm) deep
• Position Accuracy: Wood studs within 3mm and metal studs within 13mm using the dual scan and mark procedure
• Operating Temperature: -7° to 41°C
• Storage Temperature: -29° to 66°C
• Humidity: 5 - 90% RH (non-condensing)
• Water Resistance: Splash and water resistant, not waterproof
