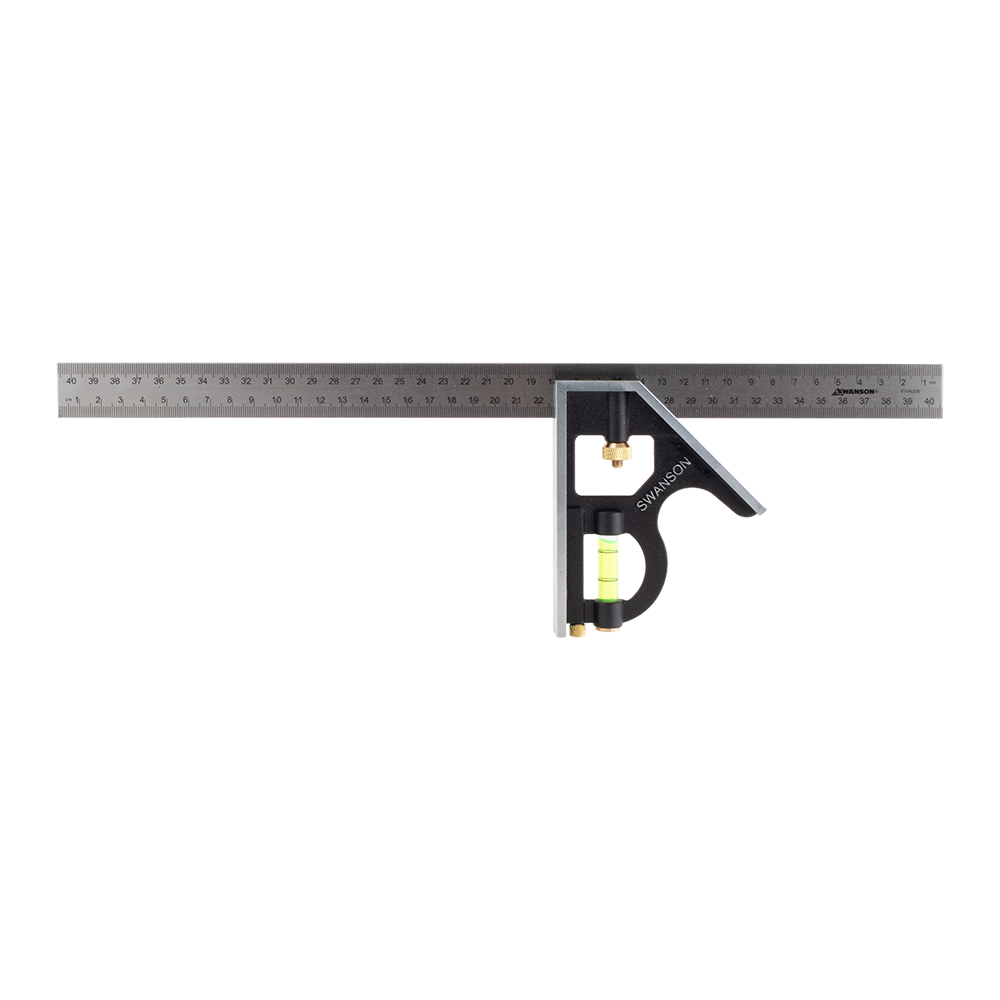

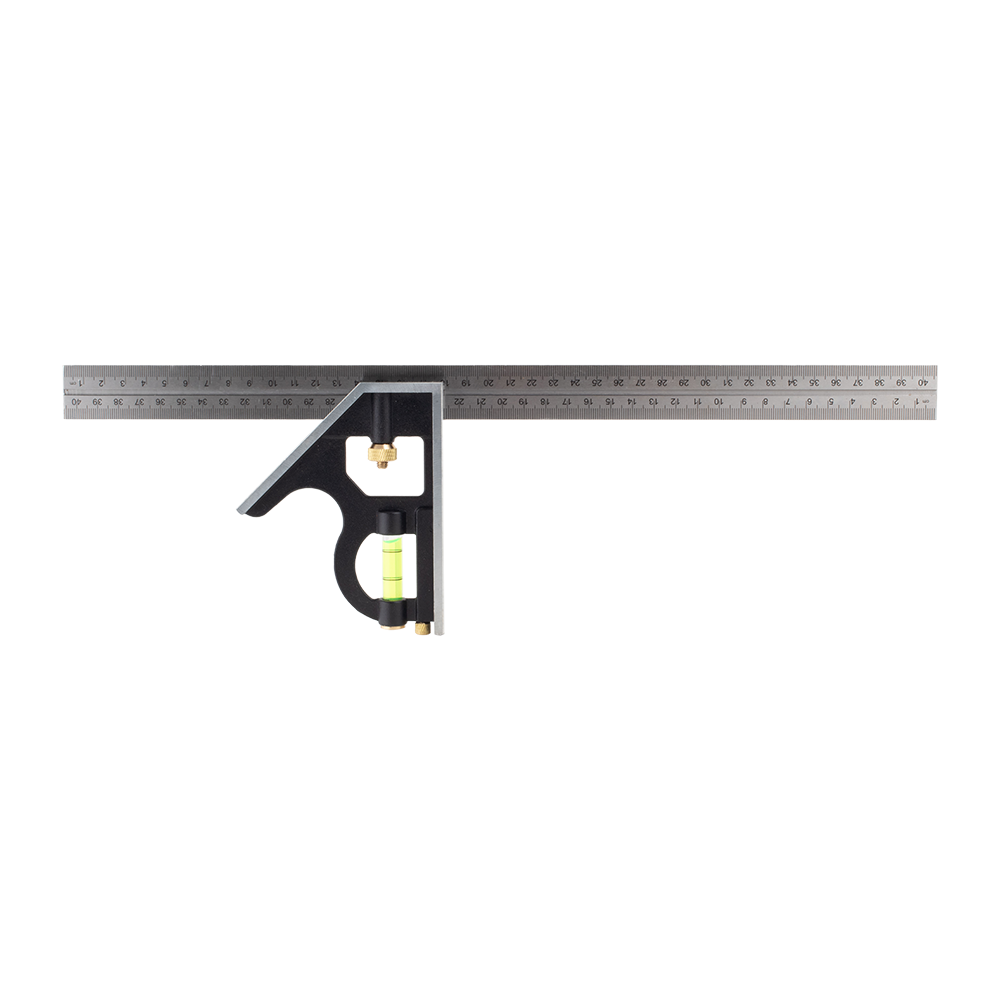

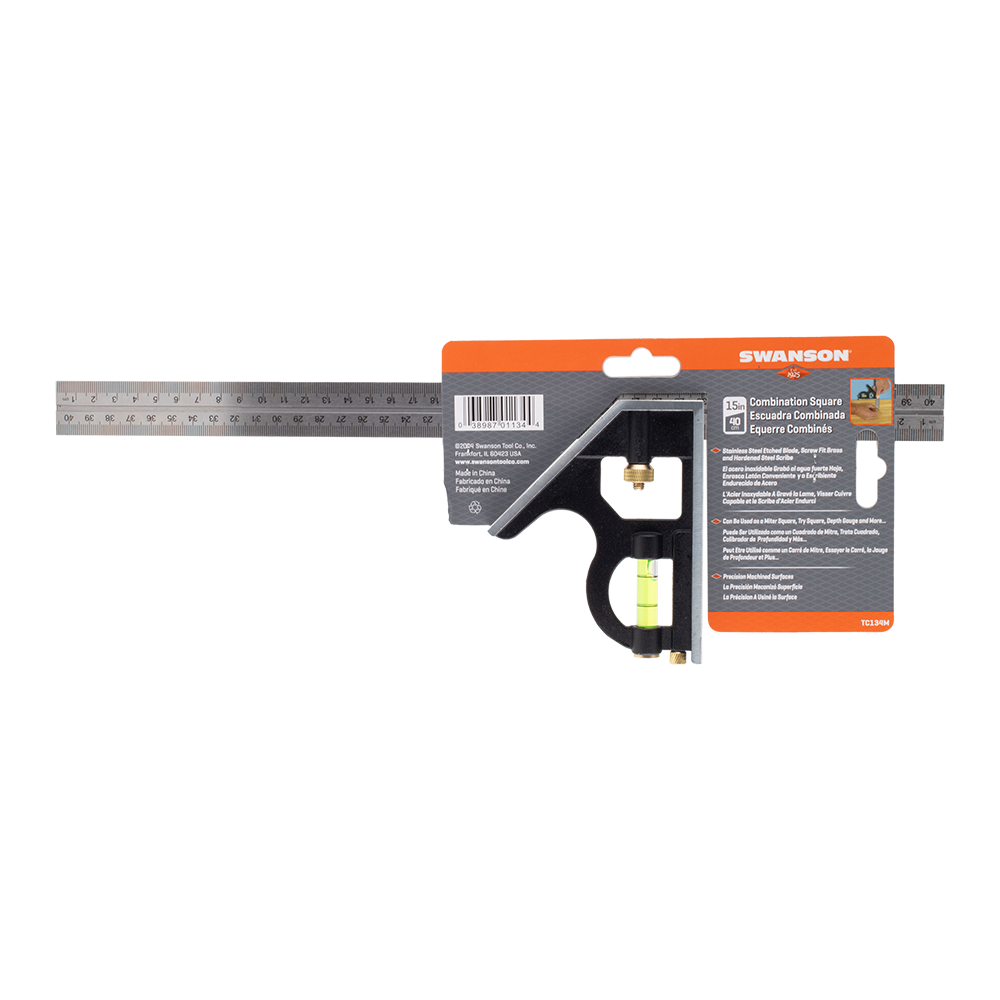

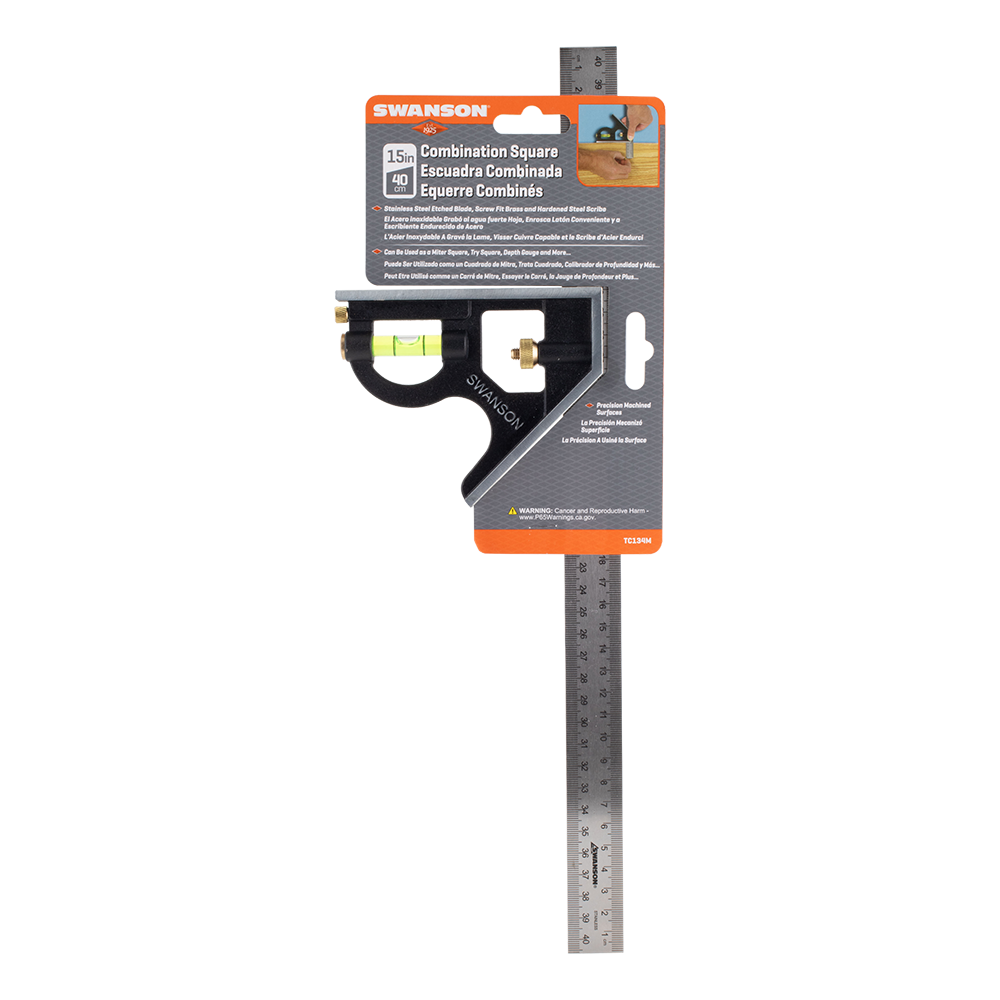

SWANSON 400mm Combination Square

SKU: SWTC134M

Barcode: 038987011344

The Swanson 400mm Combination Square features CNC machined working surfaces for enhanced accuracy, with 45° and 90° marks for precise measurements. Its impact-resistant acrylic level vial is more durable than traditional tube-type vials. Versatile and multifunctional, it serves as a miter square, try square, depth gauge, and more. The precision-machined die-cast zinc body, high-impact composite head, and spring-loaded brass bolt ensure firm, accurate settings. It includes a stainless steel etched blade with all metric mm scale graduations and a screw-fit brass and hardened steel scribe.

Features:

• Precision machined die-cast zinc body.
• Hi-impact composite head.
• Spring loaded, brass bolt assures firm, accurate settings.
• Etched Stainless Steel blade.
• Screw fit brass and hardened steel scriber.
• Impact resistant acrylic vial.
• All metric - mm scale gradations.
• Functions as a miter square, try square, depth gauge, and more.

Specifications:

• Length: 406mm
• Width: 127mm
• Depth: 19mm
• Blade Width: 25mm
• Blade Thickness: 2mm
• Blade Material: Stainless Steel
• Body Material: Die-cast zinc
• Graduations: mm
• Weight: 385g
