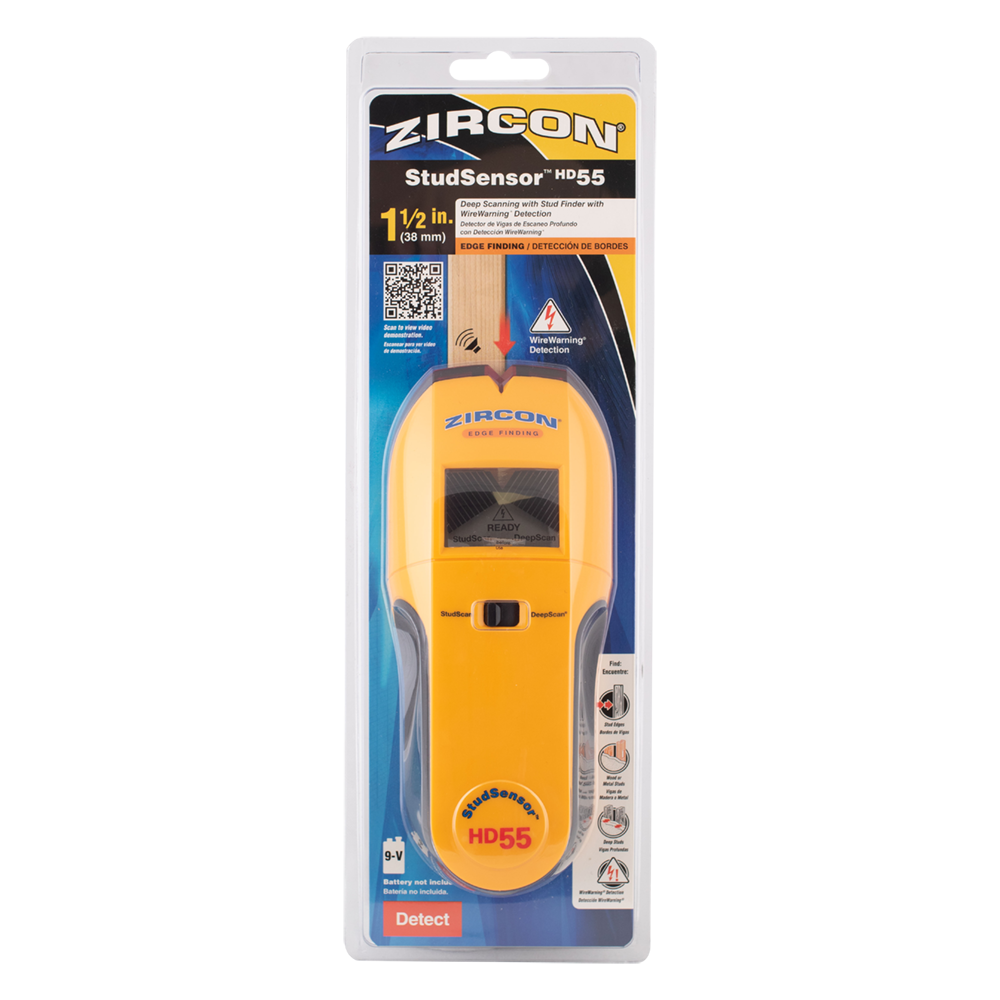

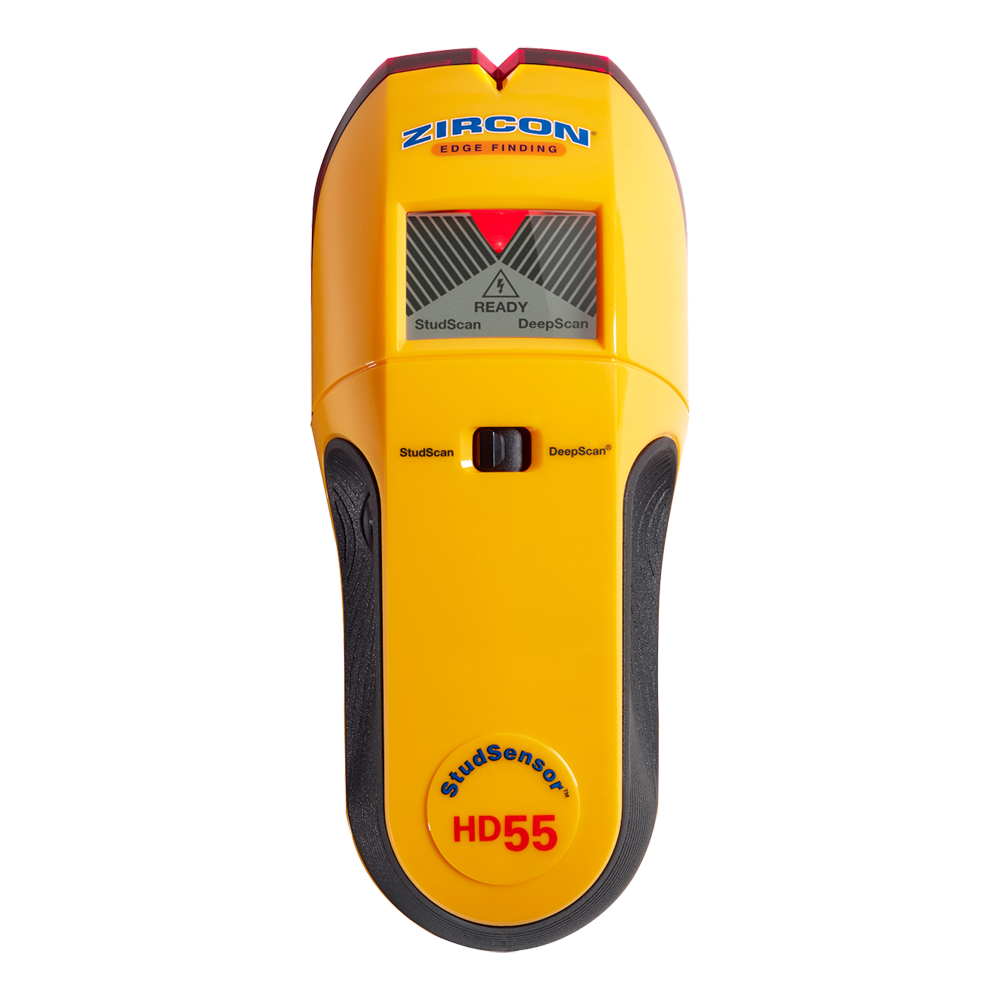

ZIRCON StudSensor™ HD55

SKU: ZN-HD55

Barcode: 042186660890

Deep-Scanning Stud Finder with SpotLite® Pointer and WireWarning® Detection

The StudSensor™ HD55 deep-scanning stud finder boasts more design innovations by Zircon. Featuring an enhanced LCD display, it debuts a new Target Spotlight that illuminates on-screen when you’ve found the edge of a stud. Select from two stud scan modes to find the edges of wood and metal studs to securely anchor mirrors, shelves, and cabinets to the wall while also avoiding live AC electrical wiring.

Features:

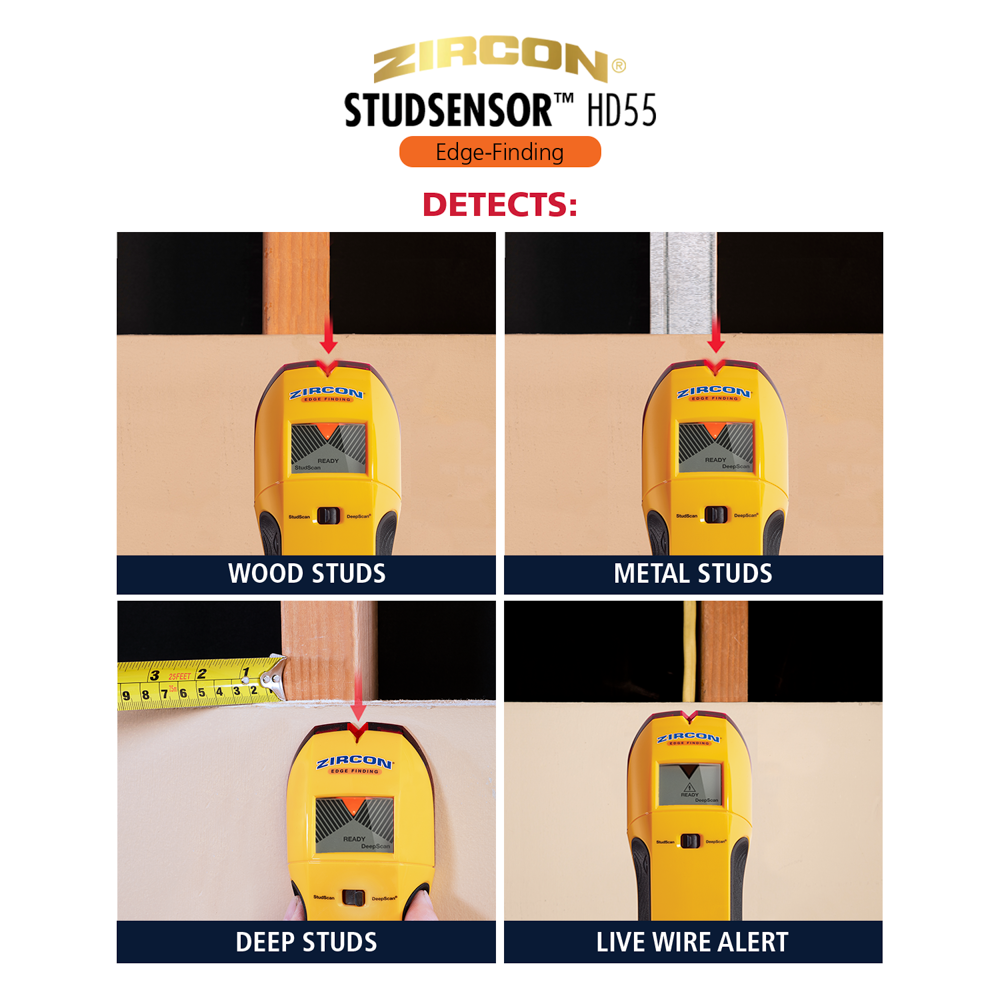

• StudScan mode locates the edges of wood or metal studs up to ¾ in. (19 mm) deep
• DeepScan® mode doubles the scanning depth to 1½ in. (38 mm) deep
• WireWarning® detection indicates the presence of live, unshielded AC electrical wiring up to 2 in. (51 mm) deep
• Zircon’s patented “over-the-stud” indication alerts the user to start the scan in a new location if scanning begins over a stud
• Enhanced LCD display with Target Spotlight indicates approaching stud edge and illuminates when stud edge is detected
• SpotLite® Pointer shines an arrow-shaped light on the wall to clearly indicate the edge of the stud
• Translucent base and illuminated “V” marker groove for more accurate marking of stud edge location
• Rubber handle for non-slip grip

Specifications:

• Dimensions: 172mm x 72mm x 37mm
• Weight: 131g (without battery)

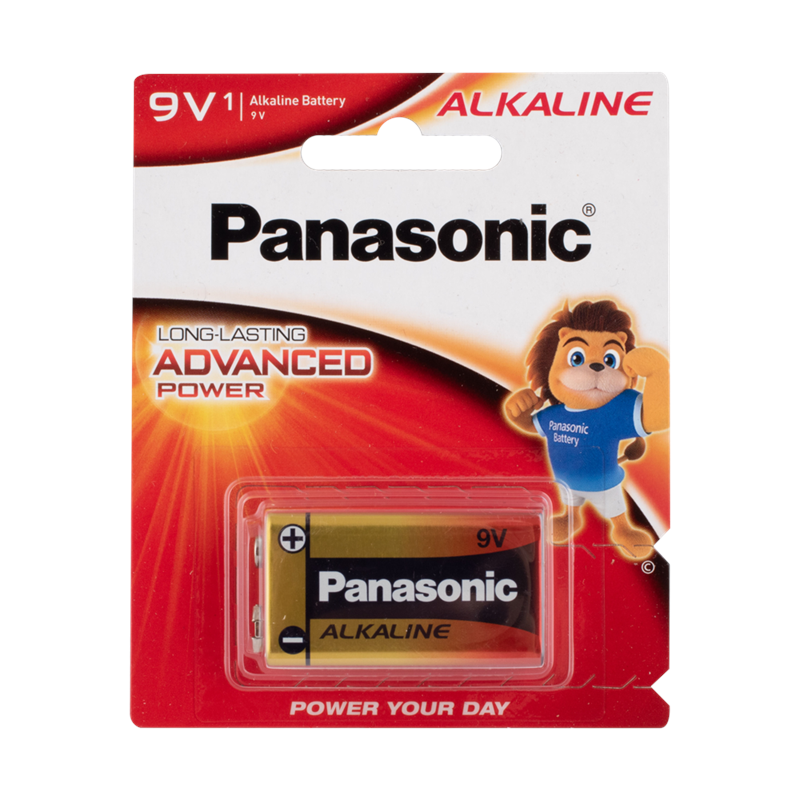

• Battery Type: 9V alkaline, required
• Depth: StudScan mode is up to 19mm and DeepScan® mode is up to 38mm
• Position Accuracy: Up to a depth of 19mm is within 3mm and up to a depth of 38mm is within 5mm using the dual scan and mark procedure
• WireWarning Position Accuracy: Typically 90-250 V at 50-60 Hz within 6 in. (152 mm) of a hot unshielded wire in drywall
• WireWarning Depth: In typical wall with Romex wiring, wire can be detected up to 2 in. (51 mm) deep
• Operating Temperature: -7° to 41°C
• Storage Temperature: -29° to 66°C
• Humidity: 5 - 90% RH (non-condensing)
• Water Resistance: Splash and water resistant, not waterproof
